Apec DSK3183 Brake Disc - 1
Apec DSK3183 Brake Disc - 2
Apec DSK3183 Brake Disc - 1
Apec DSK3183 Brake Disc - 2
APEC

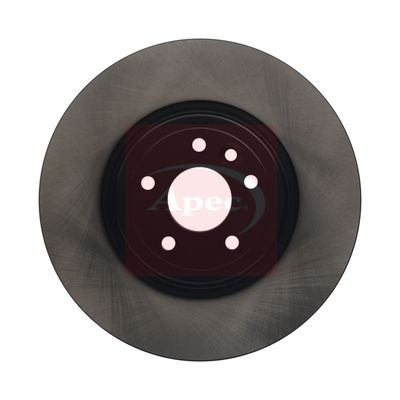

Apec DSK3183 Brake Disc

SKU: DSK3183
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£72.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 200 HP From 02/2017
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
XF II (X260)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 241 HP From 05/2015
2.0 D 1999 CCM 163 HP From 05/2015
2.0 D 1999 CCM 180 HP From 05/2015
2.0 D AWD 1999 CCM 180 HP From 03/2016
2.0 D 1999 CCM 241 HP From 03/2017
2.0 D AWD 1999 CCM 241 HP From 03/2017
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 07/2017
2.0 D 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 241 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020

The Apec DSK3183 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 325 mm outer diameter, 30 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 325
Brake Disc Thickness [mm] : 30
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 63
Number of Holes : 5
Test Mark : 90R-02C0451/0311
  • Vendor APEC
  • SKU DSK3183
  • Barcode 5028906108137
  • JAGUAR : T4N1801
  • APEC : SDK6985
  • BLUE PRINT : ADJ134368
  • BORG & BECK : BBD6104S
  • BOSCH : 0 986 479 G96
  • DELPHI : BG9166C
  • Fahren : FBD6985
  • FEBI BILSTEIN : 108654
  • HELLA : 8DD 355 133-841
  • MEYLE : 18-83 521 0013/PD
  • MINTEX : MDC3011C
  • NAPA : NBD5672
  • National : NBD1933
  • SKF : VKBD 81274 V1
  • TEXTAR : 92300505
