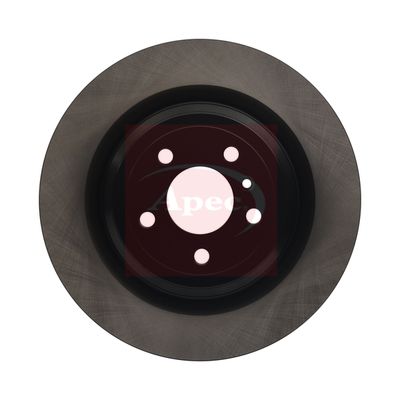

Apec DSK3195 Brake Disc - 1
Apec DSK3195 Brake Disc - 2
Apec DSK3195 Brake Disc - 1
Apec DSK3195 Brake Disc - 2
APEC

Apec DSK3195 Brake Disc

SKU: DSK3195
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£51.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (292.323, 292.324) 2987 CCM 258 HP 03/2015 - 10/2019
400 4-matic (292.356) 2996 CCM 333 HP 03/2015 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2143 CCM 204 HP 06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023) 2987 CCM 258 HP 06/2011 - 02/2015
ML 350 4-matic (166.057) 3498 CCM 306 HP 06/2011 - 12/2015
ML 400 4-matic (166.056) 2996 CCM 333 HP 08/2013 - 02/2015

The Apec DSK3195 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 22 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 22
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3195
  • Barcode 5028906108250
  • MERCEDES-BENZ : 1664230112 1664230600 A1664230112 A1664230600
  • APEC : SDK6982
  • BLUE PRINT : ADU174365
  • BORG & BECK : BBD5558
  • BOSCH : 0 986 479 E97
  • BREMBO : 09.A959.11
  • BREMBO : 09.A959.1X
  • DELPHI : BG4933C
  • Fahren : FBD6982
  • FEBI BILSTEIN : 104854
  • FTE : 9081349
  • HELLA : 8DD 355 122-561
  • MEYLE : 015 523 0043/PD
  • MINTEX : MDC2672
  • NAPA : NBD5676
  • National : NBD2085
  • TEXTAR : 92273505
