APEC

Apec DSK3196 Brake Disc

SKU: DSK3196

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£72.17 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ

GLE (W166)

Description	Cylinder Capacity	Horse Power	Year
400 4-matic (166.056)	2996 CCM	333 HP	04/2015 - 10/2018
250 d (166.006)	2143 CCM	204 HP	04/2015 - 10/2018
250 d 4-matic (166.004)	2143 CCM	204 HP	04/2015 - 10/2018

M-CLASS (W166)

Description	Cylinder Capacity	Horse Power	Year
ML 250 CDI / BlueTEC 4-matic (166.004, 166.003)	2143 CCM	204 HP	06/2011 - 12/2015
ML 350 BlueTEC 4-matic (166.024, 166.023)	2987 CCM	258 HP	06/2011 - 02/2015

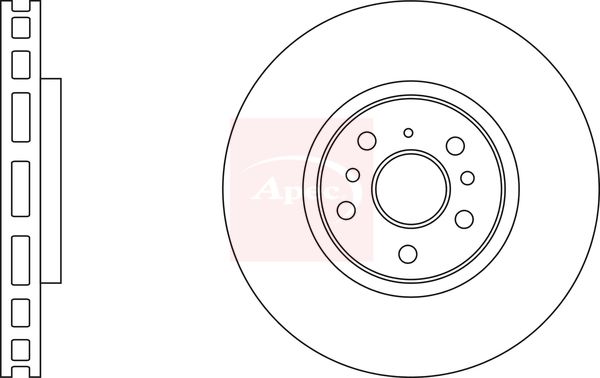

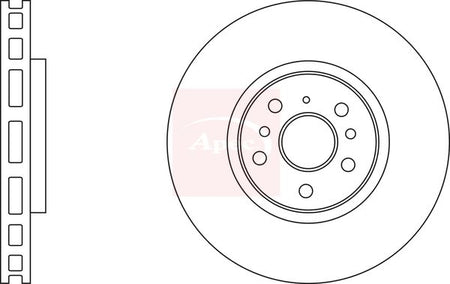

The Apec DSK3196 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 32 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 330

Brake Disc Thickness [mm] : 32

Height [mm] : 54

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Machining : High-carbon

BLUE PRINT : ADU174357
BORG & BECK : BBD5918S
BORG & BECK : BBD6101S
BOSCH : 0 986 479 D08
BREMBO : 09.A956.11
BREMBO : 09.A956.1X
DELPHI : BG9148C
FEBI BILSTEIN : 24743
HELLA : 8DD 355 126-301
MEYLE : 083 521 0026/PD
MINTEX : MDC2780C
National : NBD2307
SKF : VKBD 81183 V1
TEXTAR : 92260405
VALEO : 197744
