Apec DSK3207 Brake Disc

SKU: DSK3207
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£39.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
SX4 (EY, GY)
Description Cylinder Capacity Horse Power Year
1.5 VVT (RW415, YA11S) 1490 CCM 112 HP From 07/2010
1.6 VVT 4x4 (RW416) 1586 CCM 107 HP From 06/2006
1.5 (RW 415) 1490 CCM 99 HP 06/2006 - 07/2010
1.6 VVT (RW416, YA21S) 1586 CCM 107 HP From 06/2006
1.6 DDIS (RW416D) 1560 CCM 90 HP From 04/2007
1.6 VVT (RW416, YA21S) 1586 CCM 120 HP From 07/2009
1.6 VVT 4x4 (RW416) 1586 CCM 120 HP From 07/2009
1.5 VVTi (YA11S) 1490 CCM 110 HP 07/2007 - 12/2015
SX4 Saloon (GY, RW)
Description Cylinder Capacity Horse Power Year
1.6 (RW416) 1586 CCM 120 HP From 10/2007
1.6 (RW416) 1586 CCM 107 HP From 10/2007

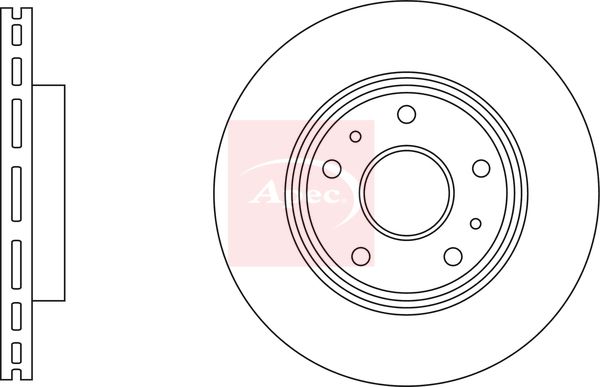

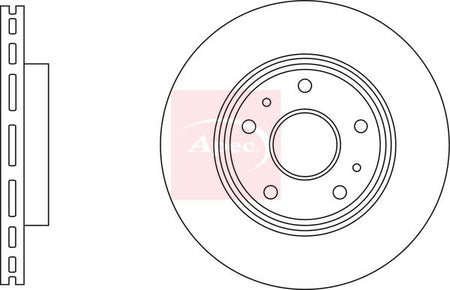

The Apec DSK3207 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 22 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 22
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C 0370/0007
  • Vendor APEC
  • SKU DSK3207
  • Barcode 5028906109004
  • SUZUKI : 5531180J02
  • APEC : SDK6839
  • BLUE PRINT : ADK84334
  • BORG & BECK : BBD4614
  • BORG & BECK : BBD5207
  • BOSCH : 0 986 479 403
  • DELPHI : BG4093
  • FEBI BILSTEIN : 108614
  • HELLA : 8DD 355 116-771
  • MEYLE : 33-15 521 0016
  • MEYLE : 33-15 521 0016/PD
  • MINTEX : MDC2179
  • National : NBD1758
  • TEXTAR : 92222100
  • TRW : DF6684
  • VALEO : 197135
