Apec DSK3223 Brake Disc - 1
Apec DSK3223 Brake Disc - 1
APEC

Apec DSK3223 Brake Disc

SKU: DSK3223
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£52.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
300C (LX, LE)
Description Cylinder Capacity Horse Power Year
5.7 5654 CCM 340 HP 09/2004 - 12/2008
3.5 AWD 3518 CCM 253 HP 09/2004 - 12/2010
3.5 3518 CCM 253 HP 01/2005 - 12/2010
300C Touring (LX, LE)
Description Cylinder Capacity Horse Power Year
3.5 3518 CCM 249 HP 09/2004 - 12/2010
3.0 CRD 2987 CCM 218 HP 09/2005 - 12/2010

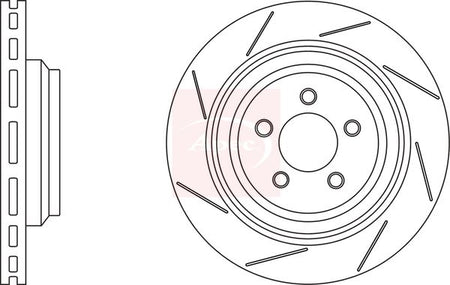

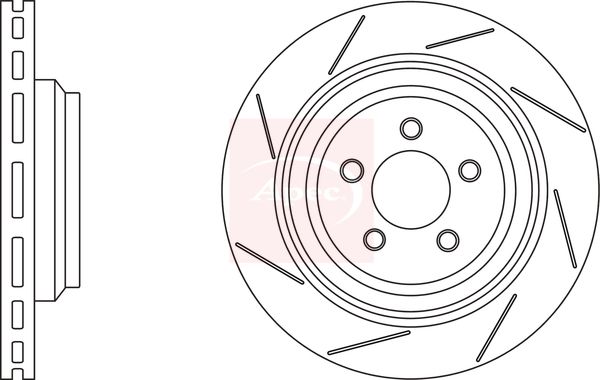

The Apec DSK3223 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records slotted/internally vented disc construction, 350 mm outer diameter, 28 mm brake disc thickness, and 73 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : slotted/internally vented
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 28
Height [mm] : 68
Bolt Hole Circle Ø [mm] : 115
Centering Diameter [mm] : 73
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3223
  • Barcode 5028906111779
  • CHRYSLER : 05290538AA 05290538AB 05290538AC 4779438AF 5290538AA
  • DODGE : 4779438AG
  • BLUE PRINT : ADA104361
  • BORG & BECK : BBD6007S
  • DELPHI : BG9199C
  • FEBI BILSTEIN : 108662
  • MINTEX : MDC2320
  • TEXTAR : 92235503
