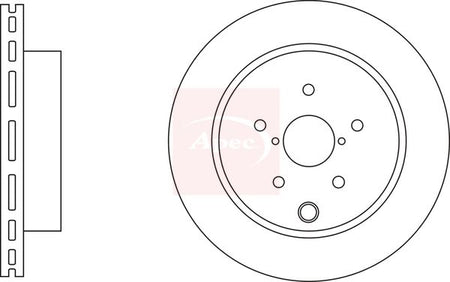

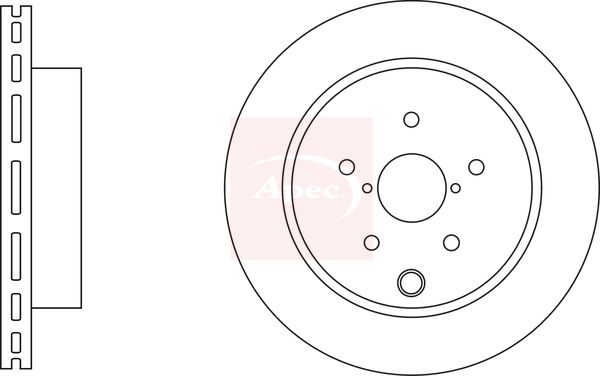

Apec DSK3224 Brake Disc - 1
Apec DSK3224 Brake Disc - 1
APEC

Apec DSK3224 Brake Disc

SKU: DSK3224
Your selected vehicle
Out of stock
Out of Stock
£58.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GVF) 2457 CCM 301 HP From 01/2011
2.5 AWD (GVB) 2457 CCM 310 HP 09/2010 - 12/2015
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
2.5 WRX STi AWD (GRF) 2457 CCM 301 HP 01/2008 - 08/2013
2.5 STI CS400 AWD (GRF) 2457 CCM 400 HP 04/2010 - 08/2013
2.5 AWD 2457 CCM 310 HP 09/2010 - 08/2013
2.5 WRX STI 330S AWD 2457 CCM 330 HP 05/2009 - 12/2010
WRX Hatchback (GP)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 300 HP 10/2010 - 12/2014
WRX Saloon (GJ)
Description Cylinder Capacity Horse Power Year
STi 2.5 AWD 2457 CCM 309 HP From 09/2011
STi 2.5 AWD 2457 CCM 301 HP From 06/2014

The Apec DSK3224 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 316 mm outer diameter, 20 mm brake disc thickness, and 58 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 20
Height [mm] : 63
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 58
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3224
  • Barcode 5028906111786
  • SUBARU : 26700FG010
  • BLUE PRINT : ADS74338
  • BORG & BECK : BBD5378
  • BOSCH : 0 986 479 V05
  • BREMBO : 09.A198.11
  • BREMBO : 09.A198.1S
  • BREMBO : 09.A198.1X
  • DELPHI : BG4287
  • HELLA : 8DD 355 118-451
  • MINTEX : MDC2398
  • National : NBD1851
  • TEXTAR : 92243703
