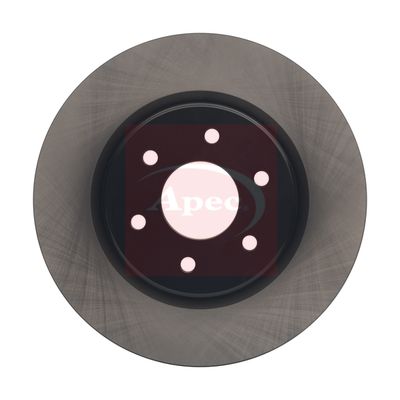

Apec DSK3225 Brake Disc
Your selected vehicle
Regular price
£52.46
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Apec DSK3225 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
Vented
Outer Diameter [mm] :
296
Brake Disc Thickness [mm] :
28
Height [mm] :
53
Bolt Hole Circle Ø [mm] :
114
Centering Diameter [mm] :
68
Number of Holes :
6
Test Mark :
90R-02C0301/0283
- Vendor APEC
- SKU DSK3225
- NISSAN : 402064KJ1B 40206JR70B 40206JR70C 40206JR70D
- APEC : SDK6847
- BLUE PRINT : ADN143172
- BORG & BECK : BBD6146S
- BOSCH : 0 986 479 D66
- BOSCH : 0 986 479 E35
- BREMBO : 09.B625.10
- BREMBO : 09.D619.11
- DELPHI : BG4941
- Fahren : FBD6847
- FEBI BILSTEIN : 170041
- HELLA : 8DD 355 126-841
- HELLA : 8DD 355 129-561
- MEYLE : 36-83 521 0046/PD
- MINTEX : MDC2828C
- NAPA : NBD5678
- National : NBD1962
- SKF : VKBD 81313 V1
- TEXTAR : 92285800
- TEXTAR : 92285803
- TRW : DF7458S
