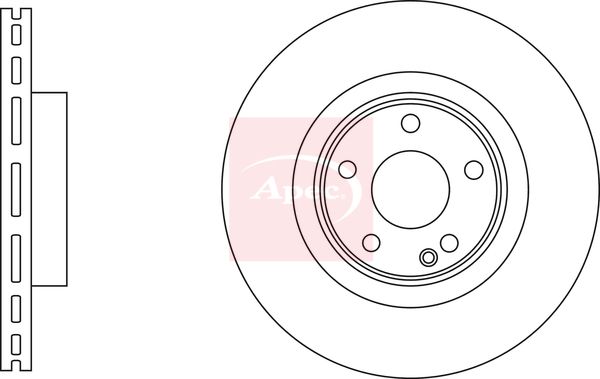

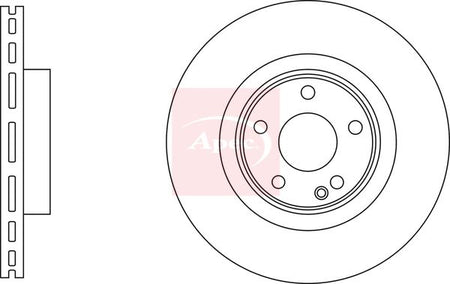

Apec DSK3229 Brake Disc - 1
Apec DSK3229 Brake Disc - 1
APEC

Apec DSK3229 Brake Disc

SKU: DSK3229
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 250 (176.044) 1991 CCM 211 HP 06/2012 - 05/2018
A 250 4-matic (176.046) 1991 CCM 211 HP 06/2013 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 250 (246.244) 1991 CCM 211 HP 05/2012 - 12/2018
B 250 4-matic (246.246) 1991 CCM 211 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 250 4-matic (117.346) 1991 CCM 211 HP 07/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 250 (117.944) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.946) 1991 CCM 211 HP 01/2015 - 03/2019
CLA 250 4-matic (117.951) 1991 CCM 218 HP 07/2015 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 250 (156.944) 1991 CCM 211 HP 12/2013 - 12/2019
GLA 250 4-matic (156.946) 1991 CCM 211 HP 12/2013 - 12/2019
INFINITI
Q30
Description Cylinder Capacity Horse Power Year
2.0 T AWD 1991 CCM 211 HP From 11/2015
2.2 D 2143 CCM 170 HP From 11/2015
2.2 D AWD 2143 CCM 170 HP From 11/2015
2.0 T 1991 CCM 211 HP From 11/2015

The Apec DSK3229 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 30 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 30
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3229
  • Barcode 5028906111830
  • MERCEDES-BENZ : 2464212612 246421261207 A2464212612
  • BLUE PRINT : ADN143184
  • BORG & BECK : BBD5324
  • BOSCH : 0 986 479 A59
  • BREMBO : 09.B807.41
  • DELPHI : BG4659C
  • FEBI BILSTEIN : 170756
  • HELLA : 8DD 355 119-701
  • MEYLE : 083 521 0020/PD
  • MINTEX : MDC2548
  • National : NBD2162
  • SKF : VKBD 81225 V1
  • TEXTAR : 92258003
  • VALEO : 197472
