Apec DSK3234 Brake Disc
Your selected vehicle
Regular price
£90.88
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

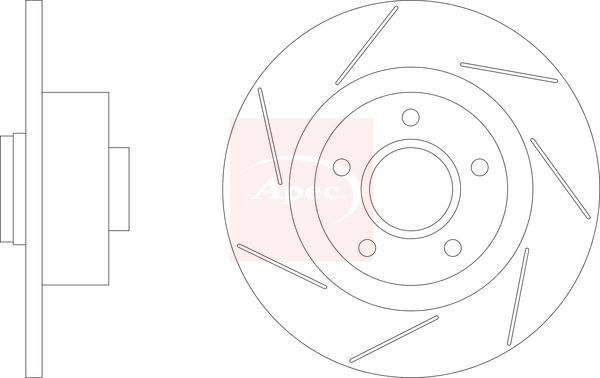

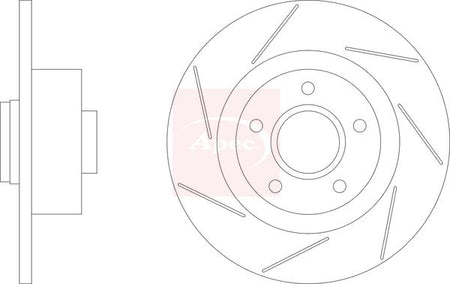

The Apec DSK3234 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid and slotted disc construction, 290 mm outer diameter, 11 mm brake disc thickness, and 30 mm stub axle diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
solid
Brake Disc Type :
slotted
Outer Diameter [mm] :
290
Brake Disc Thickness [mm] :
11
Supplementary Article/Supplementary Info 2 :
with ABS sensor ring
Supplementary Article/Supplementary Info 2 :
with wheel bearing
Height [mm] :
105
Stub Axle Diameter [mm] :
30
Bolt Hole Circle Ø [mm] :
114
Centering Diameter [mm] :
52
Number of Holes :
5
- Vendor APEC
- SKU DSK3234
- RENAULT : 402023273R 432020020R 432020021R 432020026R
- BLUE PRINT : ADR164339
- BORG & BECK : BBD6167S
- DELPHI : BG9411RSC
- FEBI BILSTEIN : 108200
- HELLA : 8DD 355 131-951
- MEYLE : 16-15 523 4106
- MINTEX : MDC2624C
- National : NBD2191
- TEXTAR : 92269603
