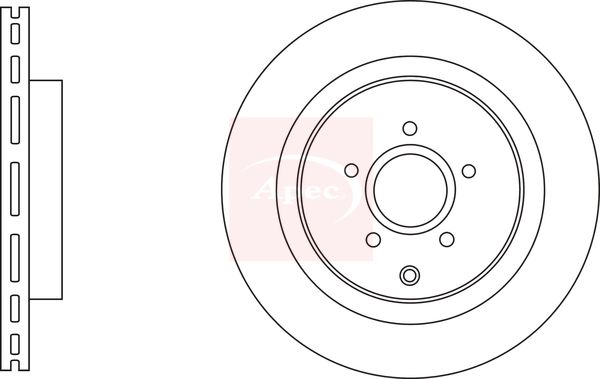

Apec DSK3247 Brake Disc - 1
Apec DSK3247 Brake Disc - 1
APEC

Apec DSK3247 Brake Disc

SKU: DSK3247
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£58.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

INFINITI
FX
Description Cylinder Capacity Horse Power Year
37 AWD 3696 CCM 320 HP From 10/2008
50 AWD 5026 CCM 390 HP From 10/2008
30d AWD 2993 CCM 238 HP From 04/2010
50 AWD 5026 CCM 420 HP 06/2013 - 07/2013
M (Y51)
Description Cylinder Capacity Horse Power Year
37 3696 CCM 320 HP From 03/2010
30d 2993 CCM 238 HP From 03/2010
Q50
Description Cylinder Capacity Horse Power Year
50 Hybrid AWD 3498 CCM 364 HP From 04/2013
50 Hybrid 3498 CCM 364 HP From 04/2013
50 Hybrid AWD 3498 CCM 355 HP From 06/2013
50 Hybrid 3498 CCM 355 HP From 06/2013
Q60 Coupe
Description Cylinder Capacity Horse Power Year
2.0 T 1991 CCM 211 HP From 09/2016
3.0 T AWD 2997 CCM 405 HP From 09/2016
Q70 (Y51)
Description Cylinder Capacity Horse Power Year
3.7 3696 CCM 320 HP From 03/2013
3.0 2993 CCM 238 HP From 03/2013
2.2 D 2143 CCM 170 HP From 10/2014
QX70
Description Cylinder Capacity Horse Power Year
30d AWD 2993 CCM 238 HP From 08/2013
50 AWD 5026 CCM 390 HP From 08/2013
3.7 AWD 3696 CCM 320 HP From 08/2013

The Apec DSK3247 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 350 mm outer diameter, 20 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 20
Height [mm] : 62
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3247
  • Barcode 5028906113650
  • NISSAN : 432061CA0A
  • INFINITI : 432061CA0A
  • BLUE PRINT : ADN143161
  • BORG & BECK : BBD6094S
  • DELPHI : BG5039C
  • FEBI BILSTEIN : 170755
  • TEXTAR : 92302203
