Apec DSK3272 Brake Disc - 1
Apec DSK3272 Brake Disc - 1
APEC

Apec DSK3272 Brake Disc

SKU: DSK3272
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£50.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 220 CDI (176.003) 2143 CCM 170 HP 09/2012 - 05/2018
A 220 CDI 4-matic (176.005) 2143 CCM 170 HP 02/2014 - 05/2018
A 220 CDI (176.003) 2143 CCM 163 HP 01/2014 - 05/2018
A 220 4-matic (176.047) 1991 CCM 184 HP 05/2014 - 05/2018
B-CLASS Sports Tourer (W246, W242)
Description Cylinder Capacity Horse Power Year
B 220 4-matic (246.247) 1991 CCM 184 HP 05/2013 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 170 HP 11/2011 - 12/2018
B 220 CDI / d (246.203) 2143 CCM 177 HP 08/2014 - 12/2018
B 220 CDI / d 4-matic (246.205) 2143 CCM 177 HP 08/2014 - 12/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 220 CDI / d (117.303) 2143 CCM 170 HP 01/2013 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 163 HP 01/2013 - 03/2019
CLA 220 CDI 4-matic (117.305) 2143 CCM 170 HP 07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 163 HP 08/2014 - 03/2019
CLA 220 CDI / d (117.303) 2143 CCM 177 HP 09/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305) 2143 CCM 177 HP 09/2014 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 220 CDI / d (117.903) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905) 2143 CCM 177 HP 01/2015 - 03/2019
CLA 220 CDI / d (117.903) 2143 CCM 163 HP 01/2015 - 03/2019
CLA 220 4-matic (117.947) 1991 CCM 184 HP 04/2016 - 03/2019
CLA 220 d (117.903) 2143 CCM 170 HP 07/2018 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 200 CDI / d (156.908) 2143 CCM 136 HP 12/2013 - 12/2019
GLA 200 CDI 4-matic (156.902) 2143 CCM 136 HP 12/2013 - 05/2019
GLA 220 CDI (156.903) 2143 CCM 170 HP 12/2013 - 05/2019
GLA 220 CDI / d (156.903) 2143 CCM 163 HP 12/2013 - 05/2019
GLA 220 CDI 4-matic (156.905) 2143 CCM 170 HP 12/2013 - 12/2019
GLA 220 CDI / d 4-matic (156.905) 2143 CCM 163 HP 12/2013 - 12/2019
GLA 220 d (156.903) 2143 CCM 177 HP 07/2015 - 05/2019
GLA 220 d 4-matic (156.905) 2143 CCM 177 HP 07/2015 - 12/2019

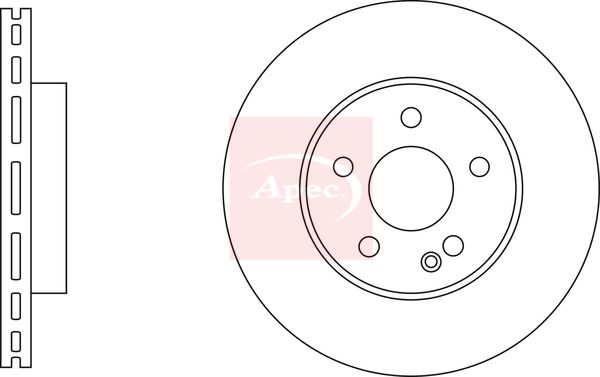

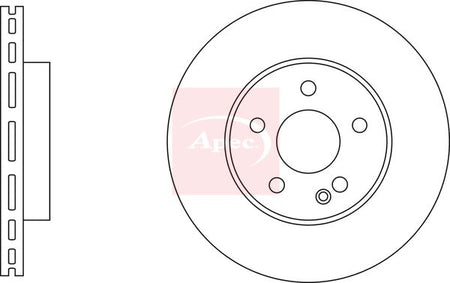

The Apec DSK3272 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 295 mm outer diameter, 28 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 295
Brake Disc Thickness [mm] : 28
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Test Mark : 90R-02C0301/0281
  • Vendor APEC
  • SKU DSK3272
  • Barcode 5028906113902
  • MERCEDES-BENZ : 2464212412 246421241207 A2464212412 A246421241207
  • APEC : SDK6980
  • BLUE PRINT : ADU174316
  • BORG & BECK : BBD5325
  • BOSCH : 0 986 479 A58
  • BREMBO : 09.B436.41
  • DELPHI : BG4646C
  • DELPHI : BG4788C
  • FEBI BILSTEIN : 43861
  • HELLA : 8DD 355 119-411
  • MEYLE : 083 521 0025/PD
  • MINTEX : MDC2520
  • NAPA : NBD5236
  • National : NBD2073
  • TEXTAR : 92254803
  • TRW : DF6591
  • VALEO : 672782
