Apec DSK3274 Brake Disc - 1
Apec DSK3274 Brake Disc - 1
APEC

Apec DSK3274 Brake Disc

SKU: DSK3274
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£49.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 500 (219.372) 5461 CCM 388 HP 04/2006 - 12/2010
CLS (C218)
Description Cylinder Capacity Horse Power Year
CLS 500 (218.373) 4663 CCM 408 HP 02/2011 - 12/2017
CLS 500 4-matic (218.391) 4663 CCM 408 HP 09/2011 - 12/2017
CLS Shooting Brake (X218)
Description Cylinder Capacity Horse Power Year
CLS 500 (218.973) 4663 CCM 408 HP 10/2012 - 12/2017
CLS 500 4-matic (218.991) 4663 CCM 408 HP 10/2012 - 12/2017

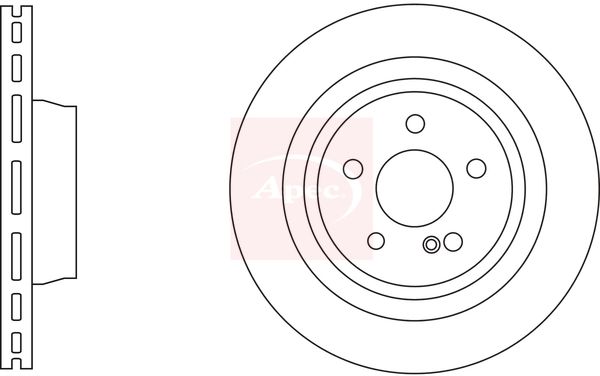

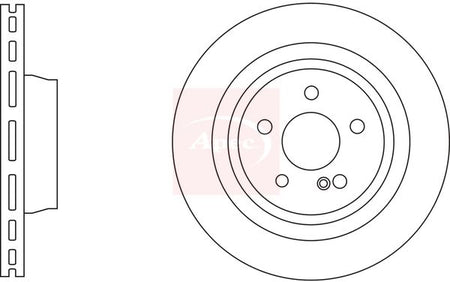

The Apec DSK3274 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 24 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 24
Height [mm] : 68
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3274
  • Barcode 5028906113926
  • MERCEDES-BENZ : 0004231112 2194230012 A0004231112 A2194230012
  • BLUE PRINT : ADU1743102
  • BORG & BECK : BBD6118S
  • BOSCH : 0 986 479 654
  • BREMBO : 09.B745.41
  • DELPHI : BG4705C
  • FEBI BILSTEIN : 43977
  • HELLA : 8DD 355 122-951
  • MINTEX : MDC2708
  • SKF : VKBD 91265 V1
  • TEXTAR : 92233705
  • TRW : DF6826S
