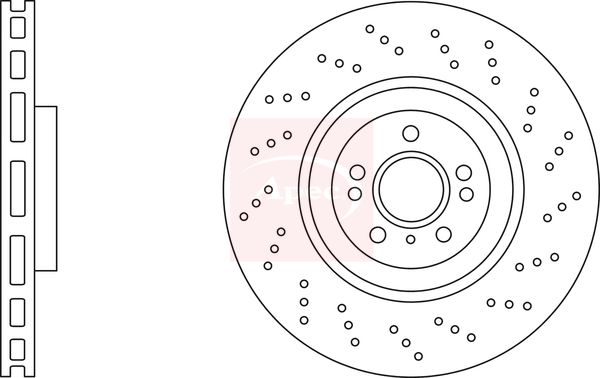

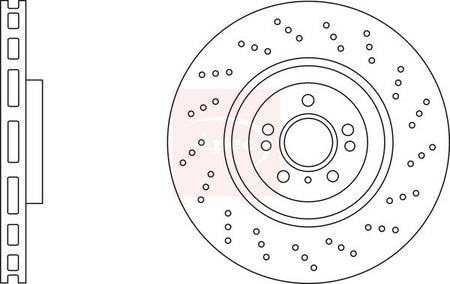

Apec DSK3276 Brake Disc - 1
Apec DSK3276 Brake Disc - 1
APEC

Apec DSK3276 Brake Disc

SKU: DSK3276
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£120.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GL-CLASS (X166)
Description Cylinder Capacity Horse Power Year
GL 350 CDI / BlueTec 4-matic (166.823, 166.824) 2987 CCM 258 HP 07/2012 - 10/2015
GL 500 4-matic (166.873) 4663 CCM 435 HP 07/2012 - 10/2015
GLE Coupe (C292)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (292.323, 292.324) 2987 CCM 258 HP 03/2015 - 10/2019
400 4-matic (292.356) 2996 CCM 333 HP 03/2015 - 10/2019
450 AMG 4-matic (292.364) 2996 CCM 367 HP 03/2015 - 10/2019
500 4-matic (292.373) 4663 CCM 456 HP 10/2015 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 367 HP 05/2016 - 10/2019
AMG 43 4-matic (292.364) 2996 CCM 390 HP 06/2017 - 10/2019
GLE (W166)
Description Cylinder Capacity Horse Power Year
500 4-matic (166.073) 4663 CCM 435 HP 04/2015 - 10/2018
400 4-matic (166.056) 2996 CCM 333 HP 04/2015 - 10/2018
500 e 4-matic (166.063) 2996 CCM 442 HP 04/2015 - 10/2018
250 d (166.006) 2143 CCM 204 HP 04/2015 - 10/2018
250 d 4-matic (166.004) 2143 CCM 204 HP 04/2015 - 10/2018
350 d 4-matic (166.024) 2987 CCM 258 HP 04/2015 - 10/2018
450 AMG 4-matic (166.064) 2996 CCM 367 HP 10/2015 - 10/2018
500 4-matic (166.073) 4663 CCM 456 HP 10/2015 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 367 HP 05/2016 - 10/2018
AMG 43 4-matic (166.064) 2996 CCM 390 HP 06/2017 - 10/2018
GLS (X166)
Description Cylinder Capacity Horse Power Year
350 d 4-matic (166.824) 2987 CCM 258 HP 11/2015 - 04/2019
400 4-matic (166.856) 2996 CCM 333 HP 11/2015 - 04/2019
500 4-matic (166.873) 4663 CCM 456 HP 11/2015 - 04/2019
M-CLASS (W166)
Description Cylinder Capacity Horse Power Year
ML 63 AMG 4-matic (166.074) 5461 CCM 558 HP 11/2011 - 02/2015
ML 63 AMG 4-matic (166.074) 5461 CCM 525 HP 11/2011 - 02/2015
ML 400 4-matic (166.056) 2996 CCM 333 HP 08/2013 - 02/2015

The Apec DSK3276 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 375 mm outer diameter, 36 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 375
Brake Disc Thickness [mm] : 36
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3276
  • Barcode 5028906114190
  • MERCEDES-BENZ : 1664210312 1664210912 1664211600 A1664210912 A1664211600
  • BLUE PRINT : ADU1743122
  • BORG & BECK : BBD6113S
  • BREMBO : 09.A960.21
  • DELPHI : BG9185C
  • FEBI BILSTEIN : 107711
  • FTE : 9081346
  • HELLA : 8DD 355 125-041
  • MINTEX : MDC2731
  • National : NBD2131
  • TEXTAR : 92279805
  • VALEO : 672689
