Apec DSK3278 Brake Disc - 1
Apec DSK3278 Brake Disc - 1
APEC

Apec DSK3278 Brake Disc

SKU: DSK3278
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£63.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W176)
Description Cylinder Capacity Horse Power Year
A 45 AMG 4-matic (176.052) 1991 CCM 360 HP 06/2013 - 05/2018
CLA Coupe (C117)
Description Cylinder Capacity Horse Power Year
CLA 45 AMG 4-matic (117.352) 1991 CCM 360 HP 07/2013 - 03/2019
CLA Shooting Brake (X117)
Description Cylinder Capacity Horse Power Year
CLA 45 AMG 4-matic (117.952) 1991 CCM 360 HP 01/2015 - 07/2015
AMG CLA 45 4-matic (117.952) 1991 CCM 381 HP 07/2015 - 03/2019
GLA-CLASS (X156)
Description Cylinder Capacity Horse Power Year
GLA 45 AMG 4-matic (156.952) 1991 CCM 360 HP 03/2014 - 06/2019
AMG GLA 45 4-matic (156.952) 1991 CCM 381 HP 07/2015 - 06/2019
SLC (R172)
Description Cylinder Capacity Horse Power Year
AMG SLC 43 (172.466) 2996 CCM 367 HP From 01/2016
AMG SLC 43 (172.466) 2996 CCM 390 HP From 06/2018
SLK (R172)
Description Cylinder Capacity Horse Power Year
55 AMG (172.475) 5461 CCM 422 HP From 01/2012

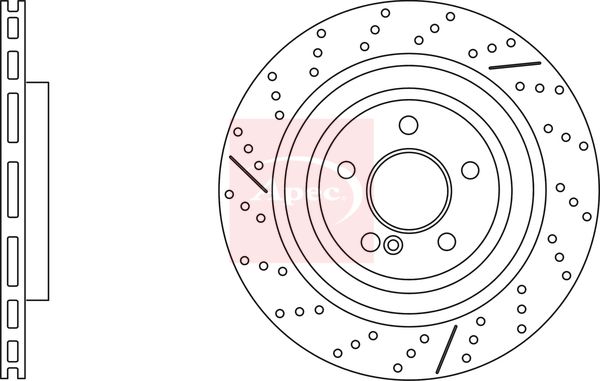

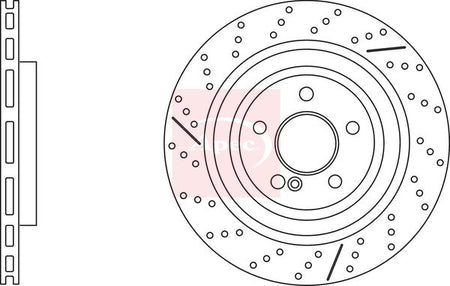

The Apec DSK3278 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records drilled dimples, slotted, and Vented disc construction, 330 mm outer diameter, 22 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Drilled dimples
Brake Disc Type : slotted
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 22
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 67
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3278
  • Barcode 5028906114886
  • MERCEDES-BENZ : 1724230112 A1724230112
  • APEC : SDK7002
  • BLUE PRINT : ADU1743120
  • BORG & BECK : BBD6129S
  • BREMBO : 09.B788.11
  • BREMBO : 09.B788.1S
  • DELPHI : BG4958C
  • FEBI BILSTEIN : 107722
  • HELLA : 8DD 355 126-441
  • MINTEX : MDC2793C
  • NAPA : NBD5941
  • National : NBD2086
  • TEXTAR : 92290605
  • TRW : DF6900
