APEC

Apec DSK3291 Brake Disc

SKU: DSK3291

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£32.16 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SSANGYONG

TIVOLI

Description	Cylinder Capacity	Horse Power	Year
1.6	1597 CCM	128 HP	From 04/2015
1.6 All-wheel Drive	1597 CCM	128 HP	From 03/2015
1.6 XDi 160	1597 CCM	116 HP	From 04/2015
1.6 XDi 160 All-wheel Drive	1597 CCM	116 HP	From 04/2015
1.6 XDi 160	1597 CCM	113 HP	From 04/2015
1.6 CNG	1597 CCM	128 HP	From 07/2018
1.5	1497 CCM	163 HP	From 06/2019
1.5 All-wheel Drive	1497 CCM	163 HP	From 06/2019
1.6 XDi 160	1597 CCM	136 HP	From 06/2019
1.6 XDi 160 All-wheel Drive	1597 CCM	136 HP	From 06/2019
1.2	1197 CCM	128 HP	From 03/2020

TIVOLI GRAND

Description	Cylinder Capacity	Horse Power	Year
1.5 T-GDi	1497 CCM	163 HP	From 06/2021
1.2 T-GDi	1197 CCM	128 HP	From 06/2021

XLV SUV

Description	Cylinder Capacity	Horse Power	Year
e-XGi 160	1597 CCM	128 HP	From 04/2016
e-XDi 160	1597 CCM	116 HP	From 04/2016
e-XDi 160 All-wheel Drive	1597 CCM	116 HP	From 04/2016
1.6 CNG	1597 CCM	128 HP	From 07/2018

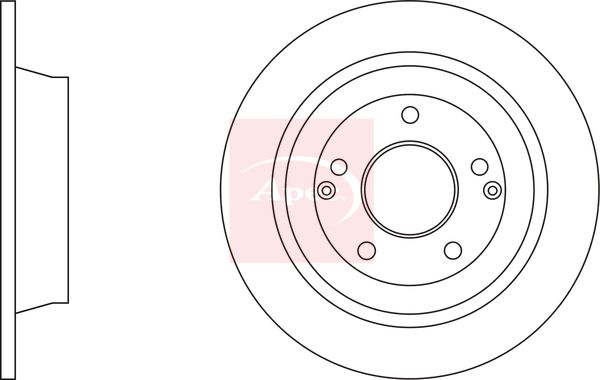

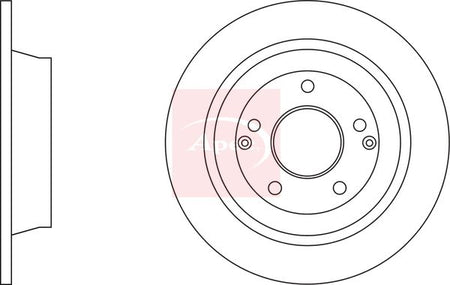

The Apec DSK3291 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 284 mm outer diameter, 10 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 10

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

Machining : High-carbon

Apec DSK3291 Brake Disc
