Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Apec DSK3296 Brake Disc - 1
Apec DSK3296 Brake Disc - 1
APEC

Apec DSK3296 Brake Disc

SKU: DSK3296
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£81.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 63 AMG (209.377) 6208 CCM 481 HP 04/2006 - 05/2009
CLK Convertible (A209)
Description Cylinder Capacity Horse Power Year
CLK 63 AMG (209.477) 6208 CCM 481 HP 04/2006 - 03/2010
SLK (R171)
Description Cylinder Capacity Horse Power Year
55 AMG (171.473) 5439 CCM 360 HP 06/2004 - 02/2011
55 AMG (171.473) 5439 CCM 400 HP 06/2006 - 02/2011
55 AMG (171.473) 5439 CCM 360 HP 09/2009 - 12/2011

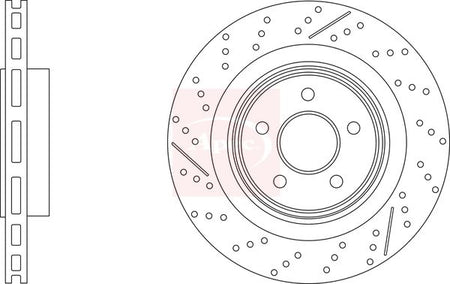

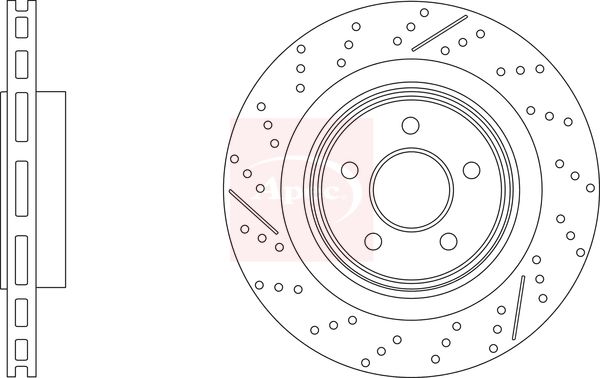

The Apec DSK3296 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records drilled dimples, slotted, and Vented disc construction, 330 mm outer diameter, 26 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Drilled dimples
Brake Disc Type : slotted
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 26
Height [mm] : 56
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3296
  • Barcode 5028906114282
  • MERCEDES-BENZ : 1714230112 1714230212 A1714230112 A1714230212
  • BORG & BECK : BBD6182S
  • FEBI BILSTEIN : 44100
  • HELLA : 8DD 355 133-231
  • MINTEX : MDC2963C
  • TEXTAR : 92151605
