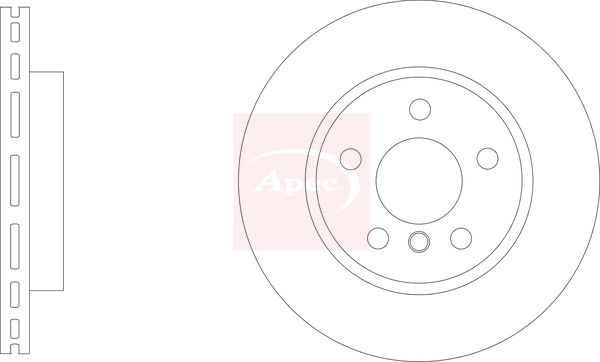

Apec DSK3308 Brake Disc - 1
Apec DSK3308 Brake Disc - 1
APEC

Apec DSK3308 Brake Disc

SKU: DSK3308
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£37.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
i3 (I01)
Description Cylinder Capacity Horse Power Year
Electric 102 HP From 08/2013
Electric 170 HP From 09/2013
Range Extender 647 CCM 170 HP From 08/2013
s Electric 184 HP From 11/2017
s Range Extender 647 CCM 184 HP From 11/2017
s Electric 102 HP From 11/2017

The Apec DSK3308 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 280 mm outer diameter, 20 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 20
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3308
  • Barcode 5028906114398
  • BMW : 34116861649 34116866293 6861649 6866293
  • BLUE PRINT : ADBP430107
  • BORG & BECK : BBD5494
  • BOSCH : 0 986 479 H70
  • DELPHI : BG4993C
  • FEBI BILSTEIN : 176803
  • HELLA : 8DD 355 132-541
  • MINTEX : MDC2900C
  • National : NBD1956
  • TEXTAR : 92305303
  • TRW : DF6715
  • VALEO : 672704
