Apec DSK3327 Brake Disc

SKU: DSK3327
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
Regular price £26.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
MX-5 IV (ND__)
Description Cylinder Capacity Horse Power Year
1.5 (ND2E, ND5R) 1496 CCM 131 HP From 06/2015
1.5 (ND6E, ND5RC) 1496 CCM 132 HP From 05/2018
MX-5 RF Targa (ND)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 131 HP From 08/2017
1.5 (ND6E) 1496 CCM 132 HP From 05/2018

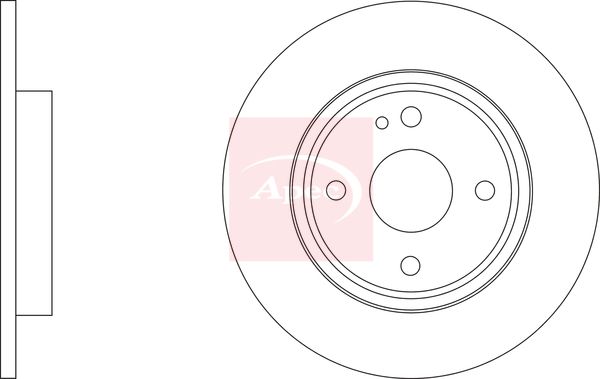

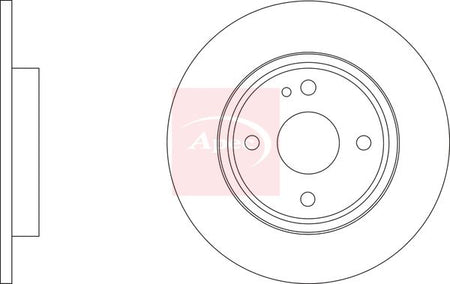

The Apec DSK3327 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 255 mm outer diameter, 9 mm brake disc thickness, and 55 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 255
Brake Disc Thickness [mm] : 9
Height [mm] : 36
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 55
Number of Holes : 4
  • Vendor APEC
  • SKU DSK3327
  • Barcode 5028906117313
  • MAZDA : DA9L26251 N24326251
  • APEC : SDK7013
  • BLUE PRINT : ADM543133
  • BORG & BECK : BBD5518
  • BOSCH : 0 986 479 G72
  • BREMBO : 08.D223.11
  • DELPHI : BG5298C
  • FEBI BILSTEIN : 170726
  • HELLA : 8DD 355 134-831
  • MEYLE : 35-15 523 0033/PD
  • MINTEX : MDC3051C
  • NAPA : NBD5934
  • National : NBD1967
  • TEXTAR : 92338203
