Apec DSK3333 Brake Disc - 1
Apec DSK3333 Brake Disc - 1
APEC

Apec DSK3333 Brake Disc

SKU: DSK3333
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£86.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
85D AWD 376 HP 10/2014 - 02/2016
60D AWD 376 HP 10/2014 - 04/2015
P85D AWD 700 HP 10/2014 - 02/2016
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
70D AWD 334 HP From 04/2015
85D AWD 421 HP 01/2014 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015
MODEL X
Description Cylinder Capacity Horse Power Year
90D AWD 525 HP From 09/2015
P90D AWD 772 HP From 09/2015
75D AWD 525 HP From 06/2016
P100D AWD 772 HP From 10/2016
60D AWD 525 HP From 06/2016
100D AWD 525 HP From 08/2017
EV AWD 573 HP From 09/2019
EV AWD 424 HP From 02/2023

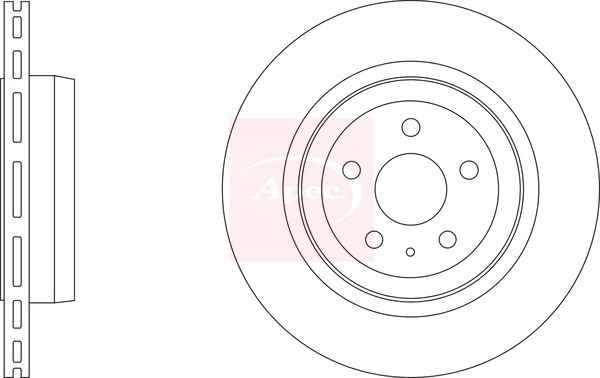

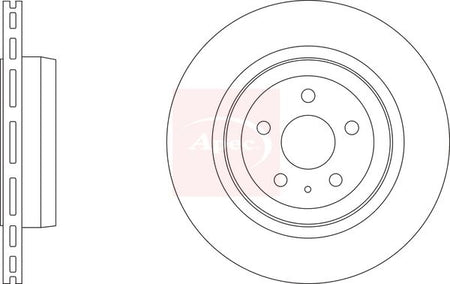

The Apec DSK3333 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 365 mm outer diameter, 28 mm brake disc thickness, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 365
Brake Disc Thickness [mm] : 28
Height [mm] : 60
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 70
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3333
  • Barcode 5028906117351
  • TESLA : 102763200B 600643100C 600643100D
  • BLUE PRINT : ADA104379
  • BORG & BECK : BBD6261S
  • BORG & BECK : BBD6294S
  • DELPHI : BG9221C
  • FEBI BILSTEIN : 178233
  • MEYLE : 70-83 523 0001/PD
  • MEYLE : 70-83 523 0002/PD
  • MINTEX : MDC2940C
  • National : NBD2146
  • TEXTAR : 92313803
  • TRW : DF6702S
  • VALEO : 673701
