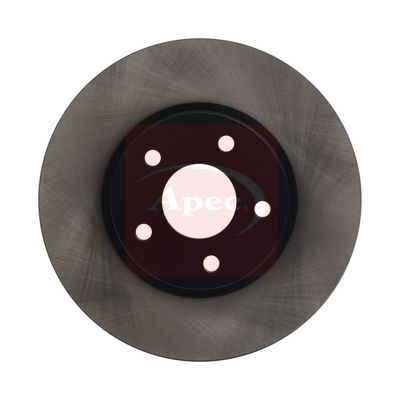

Apec DSK3337 Brake Disc

SKU: DSK3337
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£35.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS IV (HN)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 999 CCM 125 HP 01/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 01/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 01/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
2.0 ST EcoBlue 1996 CCM 190 HP 04/2019 - 11/2025
2.3 ST EcoBoost 2261 CCM 280 HP 04/2019 - 11/2025
FOCUS IV Turnier (HP)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 85 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 101 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 09/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 09/2018 - 11/2025
2.0 ST EcoBlue 1995 CCM 190 HP 04/2019 - 11/2025
2.3 ST EcoBoost 2261 CCM 280 HP 04/2019 - 11/2025
1.0 EcoBoost mHEV 999 CCM 155 HP 07/2020 - 11/2025
1.0 EcoBoost mHEV 999 CCM 125 HP 07/2020 - 11/2025
FOCUS IV Saloon (HM)
Description Cylinder Capacity Horse Power Year
1.5 EcoBlue 1499 CCM 120 HP 11/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 11/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 11/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 11/2018 - 11/2025
1.5 EcoBlue 1499 CCM 116 HP 05/2024 - 11/2025
KUGA III (DFK)
Description Cylinder Capacity Horse Power Year
2.5 Duratec Plug-in-Hybrid 2488 CCM 224 HP From 07/2019
2.0 EcoBlue mHEV 1995 CCM 150 HP From 07/2019
2.0 EcoBlue 4x4 1995 CCM 190 HP From 07/2019
1.5 EcoBlue 1499 CCM 120 HP From 07/2019
1.5 EcoBoost 1496 CCM 120 HP From 07/2019
2.5 FHEV 4x4 2488 CCM 190 HP From 01/2021
2.5 FHEV 2488 CCM 190 HP From 01/2021
1.5 Ecoboost 1496 CCM 150 HP From 07/2019
2.0 TDCi 1995 CCM 120 HP From 11/2022
2.0 TDCi 4x4 1995 CCM 120 HP From 11/2022
2.5 Duratec Plug-in-Hybrid 4x4 2488 CCM 224 HP From 07/2019
2.5 Duratec FHEV 2488 CCM 179 HP From 01/2024
2.5 Duratec FHEV 4x4 2488 CCM 182 HP From 01/2024
2.5 Duratec PHEV 2488 CCM 242 HP From 01/2024

The Apec DSK3337 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 11 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 11
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3337
  • Barcode 5028906118327
  • FORD : 1936154 2210993 G1FY2A315AA JX612A315BEA
  • BLUE PRINT : ADBP430017
  • BLUE PRINT : ADF124306
  • BORG & BECK : BBD5539
  • BORG & BECK : BBD5553
  • BOSCH : 0 986 479 F79
  • DELPHI : BG5061C
  • FEBI BILSTEIN : 171445
  • FEBI BILSTEIN : 43882
  • HELLA : 8DD 355 126-571
  • MEYLE : 715 523 0034/PD
  • MINTEX : MDC2808C
  • National : NBD1958
  • National : NBD2501
  • SKF : VKBD 91204 S2
  • TEXTAR : 92292403
  • TRW : DF6872
  • VALEO : 673161
