Apec DSK3363 Brake Disc - 1
Apec DSK3363 Brake Disc - 1
APEC

Apec DSK3363 Brake Disc

SKU: DSK3363
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£58.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S90 II (234)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
D4 1969 CCM 163 HP 09/2018 - 12/2021
V60 II (225)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 02/2018 - 12/2021
D4 1969 CCM 190 HP 02/2018 - 12/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 12/2021
T4 1969 CCM 190 HP From 05/2019
V90 II Cross Country (236)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 163 HP From 09/2018
V90 II Estate (235)
Description Cylinder Capacity Horse Power Year
D4 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
D3 AWD 1969 CCM 150 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
T4 1969 CCM 190 HP 10/2017 - 12/2021
D4 1969 CCM 163 HP 09/2018 - 12/2021

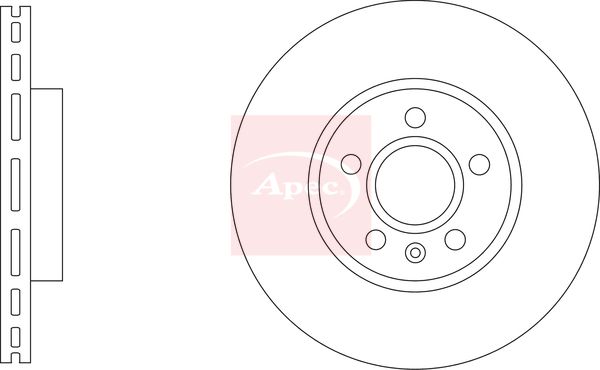

The Apec DSK3363 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and 63 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 28
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 63
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3363
  • Barcode 5028906120467
  • VOLVO : 31423722
  • APEC : SDK6960
  • BLUE PRINT : ADBP430040
  • BORG & BECK : BBD5493
  • BOSCH : 0 986 479 H03
  • DELPHI : BG5000C
  • Fahren : FBD6960
  • FEBI BILSTEIN : 171494
  • HELLA : 8DD 355 125-481
  • MEYLE : 583 521 0047/PD
  • MINTEX : MDC2762
  • NAPA : NBD5911
  • National : NBD2149
  • SKF : VKBD 81400 V1
  • TEXTAR : 92287505
  • VALEO : 673294
