Apec DSK3371 Brake Disc - 1
Apec DSK3371 Brake Disc - 1
APEC

Apec DSK3371 Brake Disc

SKU: DSK3371
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£44.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i30 (PDE, PD, PDEN)
Description Cylinder Capacity Horse Power Year
1.0 T-GDI 998 CCM 120 HP From 11/2016
1.0 T-GDI hybrid 48V 998 CCM 120 HP From 03/2020
1.5 T-GDI hybrid 48V 1482 CCM 160 HP From 03/2020
i30 Estate (PDE)
Description Cylinder Capacity Horse Power Year
1.0 T-GDI 998 CCM 120 HP From 03/2017
1.0 T-GDI hybrid 48V 998 CCM 120 HP From 03/2020
1.0 T-GDI 998 CCM 101 HP From 05/2024
i30 FASTBACK (PDE, PDEN)
Description Cylinder Capacity Horse Power Year
1.0 T-GDI 998 CCM 120 HP From 06/2017
1.5 T-GDI Hybrid 48V 1482 CCM 160 HP From 03/2020
1.0 T-GDI hybrid 48V 998 CCM 120 HP From 06/2020

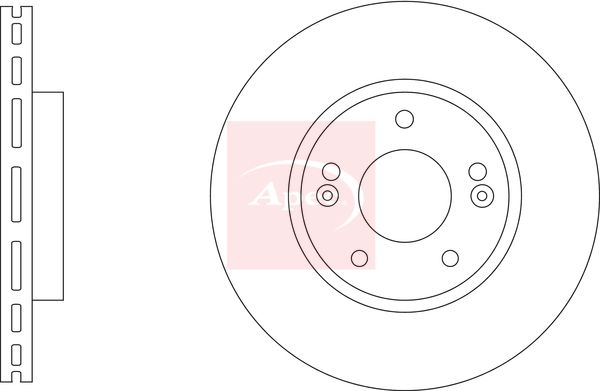

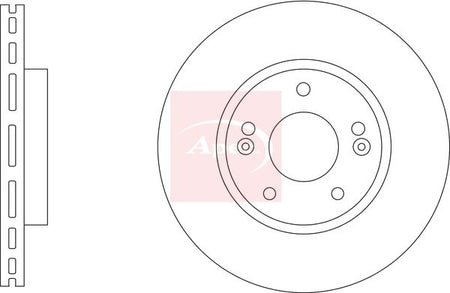

The Apec DSK3371 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 25 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 25
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Test Mark : 90R-02C0301/0020
  • Vendor APEC
  • SKU DSK3371
  • Barcode 5028906118600
  • HYUNDAI : 51712G4000
  • APEC : SDK6942
  • BLUE PRINT : ADG043232
  • BORG & BECK : BBD5535
  • BOSCH : 0 986 479 G24
  • DELPHI : BG5002C
  • HELLA : 8DD 355 126-431
  • MEYLE : 37-15 521 0044/PD
  • MINTEX : MDC2792C
  • National : NBD2228
  • TEXTAR : 92290503
  • TRW : DF6966
  • VALEO : 673260
