Apec DSK3391 Brake Disc - 1
Apec DSK3391 Brake Disc - 1
APEC

Apec DSK3391 Brake Disc

SKU: DSK3391
Your selected vehicle
Out of stock
Out of Stock
£34.12 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA
PICANTO III (JA)
Description Cylinder Capacity Horse Power Year
1.0 998 CCM 67 HP From 03/2017
1.2 1248 CCM 84 HP From 03/2017
1.0 T-GDi 998 CCM 100 HP From 03/2017
1.0 998 CCM 69 HP From 03/2017
1.0 LPG 998 CCM 65 HP From 11/2018
1.2 MPI 1197 CCM 84 HP From 07/2020
1.0 998 CCM 63 HP From 05/2024
1.2 DPI 1197 CCM 79 HP From 05/2024

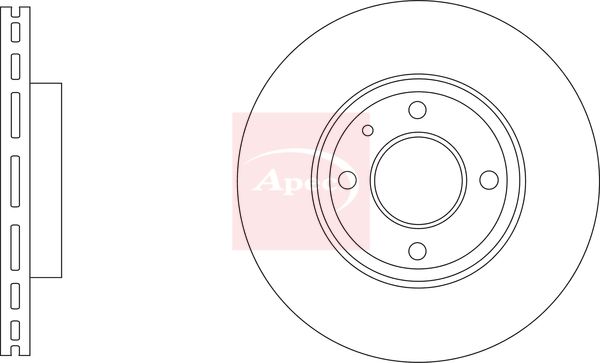

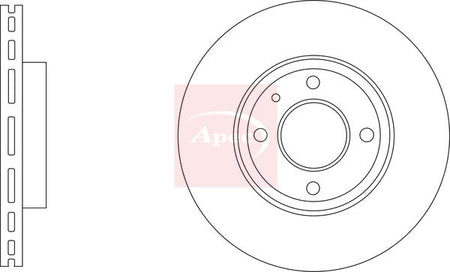

The Apec DSK3391 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 20 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 20
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 62
Number of Holes : 4
Machining : High-carbon
Test Mark : 90R-02C 01275/37305
  • Vendor APEC
  • SKU DSK3391
  • Barcode 5028906121174
  • KIA : 51712G6300 KIA151
  • APEC : SDK6947
  • BLUE PRINT : ADG043234
  • BORG & BECK : BBD5528
  • BOSCH : 0 986 479 G86
  • DELPHI : BG5009C
  • Fahren : FBD6947
  • HELLA : 8DD 355 130-001
  • MEYLE : 28-15 521 0027
  • MINTEX : MDC2841C
  • NAPA : NBD5333
  • National : NBD2153
  • TEXTAR : 92295403
  • VALEO : 673405
