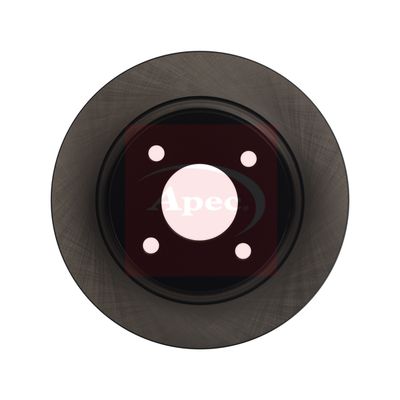

Apec DSK3393 Brake Disc - 1
Apec DSK3393 Brake Disc - 2
Apec DSK3393 Brake Disc - 1
Apec DSK3393 Brake Disc - 2
APEC

Apec DSK3393 Brake Disc

SKU: DSK3393
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£27.99 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FIESTA VII (HJ, HF)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 101 HP From 05/2017
1.0 EcoBoost 998 CCM 125 HP From 05/2017
1.5 TDCi 1499 CCM 120 HP From 05/2017
1.0 EcoBoost 998 CCM 140 HP From 06/2017
1.5 ST EcoBoost 1496 CCM 200 HP From 04/2018
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.0 EcoBoost mHEV 999 CCM 155 HP From 07/2020
1.0 EcoBoost mHEV Active 999 CCM 155 HP From 01/2021
FIESTA VII Van
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 09/2018
1.5 TDCi 1499 CCM 120 HP From 09/2018
1.5 TDCi 1499 CCM 86 HP From 04/2019
1.0 EcoBoost 998 CCM 101 HP From 04/2019
1.0 EcoBoost 998 CCM 140 HP From 04/2019
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.0 EcoBoost mHEV 999 CCM 125 HP From 06/2020
1.0 EcoBoost Flex 999 CCM 95 HP From 12/2019

The Apec DSK3393 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 253 mm outer diameter, 12 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 253
Brake Disc Thickness [mm] : 12
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 4
Machining : High-carbon
Test Mark : 90R-02C 01275/36141
  • Vendor APEC
  • SKU DSK3393
  • Barcode 5028906121198
  • FORD : 2096336 H1BC2A315AB
  • APEC : SDK6949
  • BLUE PRINT : ADF124364
  • BORG & BECK : BBD5575
  • BOSCH : 0 986 479 F63
  • BREMBO : 08.D566.11
  • DELPHI : BG4954C
  • Fahren : FBD6949
  • FEBI BILSTEIN : 105850
  • HELLA : 8DD 355 126-611
  • MEYLE : 715 523 0033/PD
  • MINTEX : MDC2812C
  • NAPA : NBD5705
  • National : NBD2022
  • SKF : VKBD 91279 S2
  • TEXTAR : 92292803
  • VALEO : 673122
