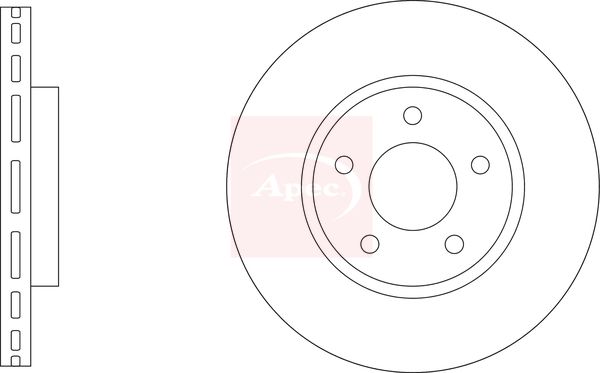

Apec DSK3412 Brake Disc - 1

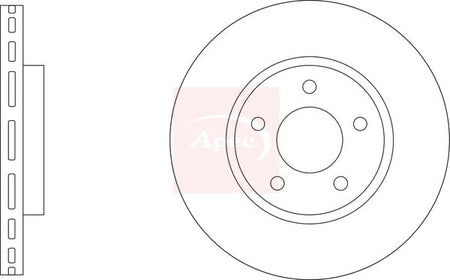

Apec DSK3412 Brake Disc - 1
APEC

Apec DSK3412 Brake Disc

SKU: DSK3412
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£53.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
INSIGNIA B Grand Sport (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (68) 1490 CCM 140 HP From 03/2017
1.6 CDTi (68) 1598 CCM 110 HP From 03/2017
1.6 CDTi (68) 1598 CCM 136 HP From 03/2017
1.5 CDTi (68) 1496 CCM 122 HP From 02/2020
INSIGNIA B Sports Tourer (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (35) 1490 CCM 140 HP From 03/2017
1.6 CDTi (35) 1598 CCM 110 HP From 03/2017
1.6 CDTi (35) 1598 CCM 136 HP From 03/2017
VAUXHALL
INSIGNIA Mk II (B) Sports Tourer (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (35) 1490 CCM 140 HP From 03/2017
1.5 (35) 1490 CCM 165 HP From 03/2017
1.6 D (35) 1598 CCM 110 HP From 03/2017
1.6 D (35) 1598 CCM 136 HP From 03/2017
INSIGNIA Mk II (B) Hatchback (Z18)
Description Cylinder Capacity Horse Power Year
1.5 (68) 1490 CCM 140 HP From 03/2017
1.5 (68) 1490 CCM 165 HP From 03/2017
1.6 D (68) 1598 CCM 110 HP From 03/2017
1.6 D (68) 1598 CCM 136 HP From 03/2017
1.5 CDTi 1496 CCM 122 HP From 02/2020

The Apec DSK3412 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 26 mm brake disc thickness, and 71 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 26
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 115
Centering Diameter [mm] : 71
Number of Holes : 5
Test Mark : 90R-02C 0301/0033
  • Vendor APEC
  • SKU DSK3412
  • Barcode 5028906121310
  • VAUXHALL : 1351004 13517846 13521004 YR00073080
  • APEC : SDK6954
  • BLUE PRINT : ADG043166
  • BORG & BECK : BBD4797
  • BORG & BECK : BBD6193S
  • BOSCH : 0 986 479 644
  • BOSCH : 0 986 479 C56
  • DELPHI : BG4967C
  • FEBI BILSTEIN : 39190
  • HELLA : 8DD 355 116-591
  • MINTEX : MDC2133
  • NAPA : NBD5878
  • National : NBD1979
  • SKF : VKBD 81365 V1
  • TEXTAR : 92205603
  • TEXTAR : 92205605
