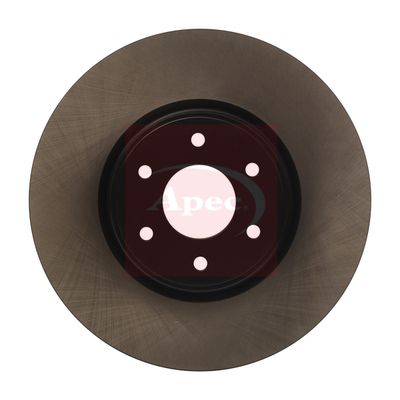

Apec DSK3422 Brake Disc - 1
Apec DSK3422 Brake Disc - 2
Apec DSK3422 Brake Disc - 1
Apec DSK3422 Brake Disc - 2
APEC

Apec DSK3422 Brake Disc

SKU: DSK3422
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£66.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
X-CLASS (470)
Description Cylinder Capacity Horse Power Year
X 220 d (470.210) 2298 CCM 163 HP 09/2017 - 05/2020
X 220 d 4-matic (470.211) 2298 CCM 163 HP 09/2017 - 05/2020
X 250 d 4-matic (470.231) 2298 CCM 190 HP 09/2017 - 05/2020
X 250 d (470.230) 2298 CCM 190 HP 09/2017 - 05/2020
X 350 d 4-matic (470.252) 2987 CCM 258 HP 07/2018 - 05/2020
NISSAN
NAVARA NP300 Pickup (D23, D23T)
Description Cylinder Capacity Horse Power Year
2.3 dCi (D231) 2298 CCM 163 HP From 01/2015
2.3 dCi 4x4 (D231) 2298 CCM 163 HP From 01/2015
2.3 dCi 4x4 (D231, D23T) 2298 CCM 190 HP From 10/2015
2.3 dCi 2298 CCM 190 HP From 01/2015
NAVARA NP300 Platform/Chassis (D23)
Description Cylinder Capacity Horse Power Year
2.3 dCi 4x4 2298 CCM 163 HP From 01/2015

The Apec DSK3422 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 28 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 28
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 76
Number of Holes : 6
Machining : High-carbon
Test Mark : 90R-02C01514/42066
  • Vendor APEC
  • SKU DSK3422
  • Barcode 5028906128289
  • MERCEDES-BENZ : 4704210200 A4704210200
  • NISSAN : 402065XA0A
  • BLUE PRINT : ADU174394
  • BORG & BECK : BBD6222S
  • BOSCH : 0 986 479 H29
  • DELPHI : BG9343C
  • FEBI BILSTEIN : 107222
  • HELLA : 8DD 355 131-401
  • MEYLE : 083 521 0042/PD
  • MINTEX : MDC2846C
  • National : NBD2201
  • SKF : VKBD 81373 V1
  • TEXTAR : 92296503
