Apec DSK3423 Brake Disc - 1
Apec DSK3423 Brake Disc - 1
APEC

Apec DSK3423 Brake Disc

SKU: DSK3423
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£38.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
X-CLASS (470)
Description Cylinder Capacity Horse Power Year
X 220 d (470.210) 2298 CCM 163 HP 09/2017 - 05/2020
X 220 d 4-matic (470.211) 2298 CCM 163 HP 09/2017 - 05/2020
X 250 d 4-matic (470.231) 2298 CCM 190 HP 09/2017 - 05/2020
X 250 d (470.230) 2298 CCM 190 HP 09/2017 - 05/2020
X 350 d 4-matic (470.252) 2987 CCM 258 HP 07/2018 - 05/2020
NISSAN
NAVARA NP300 Pickup (D23, D23T)
Description Cylinder Capacity Horse Power Year
2.3 dCi 4x4 (D231) 2298 CCM 163 HP From 01/2015
2.3 dCi 4x4 (D231, D23T) 2298 CCM 190 HP From 10/2015
NAVARA NP300 Platform/Chassis (D23)
Description Cylinder Capacity Horse Power Year
2.3 dCi 4x4 2298 CCM 163 HP From 01/2015

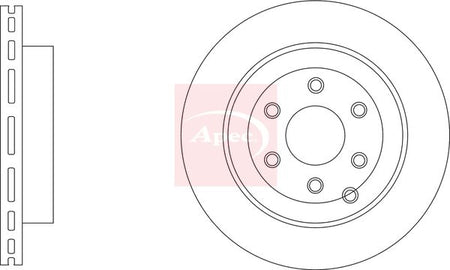

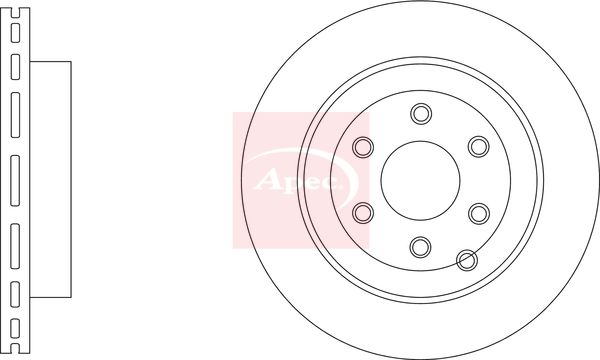

The Apec DSK3423 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 308 mm outer diameter, 18 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 18
Height [mm] : 61
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 6
  • Vendor APEC
  • SKU DSK3423
  • Barcode 5028906128296
  • MERCEDES-BENZ : 4704230200 A4704230200
  • NISSAN : 432065XA0A
  • BLUE PRINT : ADBP430128
  • BLUE PRINT : ADN143119
  • BORG & BECK : BBD5601
  • BOSCH : 0 986 479 J68
  • DELPHI : BG4994C
  • FEBI BILSTEIN : 108440
  • FEBI BILSTEIN : 178650
  • HELLA : 8DD 355 131-391
  • MEYLE : 015 523 0047/PD
  • MINTEX : MDC2845C
  • National : NBD2204
  • SKF : VKBD 90426 V2
  • TEXTAR : 92296403
  • TRW : DF6967
