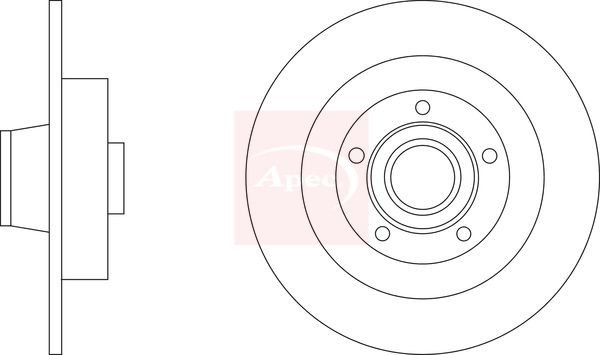

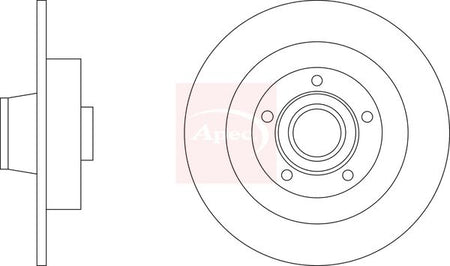

Apec DSK3426 Brake Disc - 1
Apec DSK3426 Brake Disc - 1
APEC

Apec DSK3426 Brake Disc

SKU: DSK3426
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£104.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
GRAND SCÉNIC IV (R9_)
Description Cylinder Capacity Horse Power Year
1.2 TCe 130 1198 CCM 130 HP 09/2016 - 03/2023
1.2 TCe 115 1198 CCM 115 HP 09/2016 - 03/2023
1.5 dCi 110 (R9A3) 1461 CCM 110 HP 09/2016 - 03/2023
1.6 dCi 130 1598 CCM 130 HP 09/2016 - 03/2023
1.6 dCi 160 1598 CCM 160 HP 09/2016 - 03/2023
1.5 dCi 110 Hybrid Assist (R9AE, R9A3) 1461 CCM 110 HP 04/2017 - 03/2023
1.3 TCe 160 1332 CCM 163 HP 01/2018 - 03/2023
1.3 TCe 140 (R9NB) 1332 CCM 140 HP 01/2018 - 03/2023
1.3 TCe 115 (R9N9) 1332 CCM 115 HP 01/2018 - 03/2023
1.3 TCe 160 (R9NC) 1332 CCM 159 HP 09/2018 - 03/2023
1.7 Blue dCi 120 (R9A7, R9A8) 1749 CCM 120 HP 08/2018 - 03/2023
1.7 Blue dCi 150 (R9A7, R9A8) 1749 CCM 150 HP 08/2018 - 03/2023
1.3 TCe 160 (R9NC) 1332 CCM 158 HP 01/2022 - 03/2023
1.5 dCi 95 Hybrid Assist (R9A3) 1461 CCM 95 HP 11/2016 - 03/2023
MEGANE IV Hatchback (B9A/M/N_)
Description Cylinder Capacity Horse Power Year
1.6 TCe 205 (B9MV) 1618 CCM 205 HP From 11/2015
1.6 dCi 165 1598 CCM 163 HP From 11/2015
1.6 TCe 165 1618 CCM 165 HP From 07/2017
1.5 Blue dCi 115 (B9A6) 1461 CCM 116 HP From 08/2018
MEGANE IV Grandtour (K9A/M/N_)
Description Cylinder Capacity Horse Power Year
1.6 TCe 205 1618 CCM 205 HP From 04/2016
1.6 dCi 165 1598 CCM 163 HP From 04/2016
1.5 Blue dCi 115 (K9A6) 1461 CCM 116 HP From 08/2018
MEGANE IV Grand Coupe (LVA/M/N)
Description Cylinder Capacity Horse Power Year
1.5 Blue dCi 115 (LVA6) 1461 CCM 115 HP From 02/2019
SCÉNIC IV (J9_)
Description Cylinder Capacity Horse Power Year
1.2 TCe 130 1197 CCM 130 HP 09/2016 - 07/2022
1.2 TCe 115 1198 CCM 115 HP 09/2016 - 07/2022
1.5 dCi 110 1461 CCM 110 HP 09/2016 - 07/2022
1.6 dCi 130 1598 CCM 130 HP 09/2016 - 07/2022
1.6 dCi 160 1598 CCM 160 HP 09/2016 - 07/2022
1.5 dCi 110 Hybrid Assist (J9AE) 1461 CCM 110 HP 04/2017 - 07/2022
1.3 TCe 140 1332 CCM 140 HP 01/2018 - 07/2022

The Apec DSK3426 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 11 mm brake disc thickness, and 30 mm stub axle diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 11
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Supplementary Article/Supplementary Info 2 : with wheel bearing
Height [mm] : 90
Stub Axle Diameter [mm] : 30
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 52
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3426
  • Barcode 5028906142469
  • RENAULT : 432021878R 432024962R 432029176R
  • BLUE PRINT : ADBP430173
  • BORG & BECK : BBD6231S
  • BOSCH : 0 986 479 F42
  • DELPHI : BG9488RSC
  • FEBI BILSTEIN : 185812
  • HELLA : 8DD 355 133-241
  • MEYLE : 16-15 523 4123
  • MINTEX : MDC2965C
  • National : NBD2035
  • TEXTAR : 92316503
  • VALEO : 673718
