Apec DSK3434 Brake Disc - 1
Apec DSK3434 Brake Disc - 1
APEC

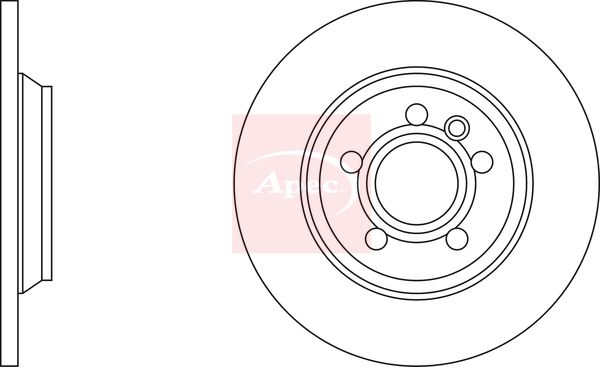

Apec DSK3434 Brake Disc

SKU: DSK3434
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£37.38 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.003) 1461 CCM 116 HP From 03/2018
A 200 (177.087) 1332 CCM 163 HP From 03/2018
A 180 (177.084) 1332 CCM 136 HP From 06/2018
A 200 d (177.012) 1950 CCM 150 HP From 11/2018
A 160 d (177.002) 1461 CCM 95 HP From 05/2019
A-CLASS Saloon (V177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.103) 1461 CCM 116 HP From 09/2018
A 200 (177.187) 1332 CCM 163 HP From 09/2018
A 200 d (177.112) 1950 CCM 150 HP From 08/2019
A 160 d (177.102) 1461 CCM 95 HP From 10/2019
B-CLASS Sports Tourer (W247)
Description Cylinder Capacity Horse Power Year
B 200 d (247.012) 1950 CCM 150 HP From 12/2018
B 180 (247.084) 1332 CCM 136 HP From 12/2018
B 200 (247.087) 1332 CCM 163 HP From 12/2018
B 180 d (247.003) 1461 CCM 116 HP From 12/2018
B 160 (247.082) 1332 CCM 109 HP From 04/2019
B 200 (247.087) 1332 CCM 150 HP From 01/2019
B 160 d (247.002) 1461 CCM 95 HP From 05/2019
B 200 d 4-matic (247.013) 1950 CCM 150 HP 10/2019 - 09/2021
CLA (C118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.384) 1332 CCM 136 HP From 03/2019
CLA 180 d (118.303) 1461 CCM 116 HP From 03/2019
CLA Shooting Brake (X118)
Description Cylinder Capacity Horse Power Year
CLA 180 d (118.603) 1461 CCM 116 HP From 06/2019

The Apec DSK3434 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 276 mm outer diameter, 11 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 11
Height [mm] : 42
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Machining : High-carbon
Test Mark : 90R-02C0270/0251
  • Vendor APEC
  • SKU DSK3434
  • Barcode 5028906142513
  • MERCEDES-BENZ : 2474230112 247 423 01 12 07 A2474230112 A247 423 01 12 07 A247423011207
  • BLUE PRINT : ADU1743115
  • BORG & BECK : BBD5617
  • BOSCH : 0 986 479 H60
  • DELPHI : BG5047C
  • FEBI BILSTEIN : 107512
  • HELLA : 8DD 355 133-061
  • MEYLE : 083 523 1009/PD
  • MINTEX : MDC2948C
  • National : NBD2132
  • TEXTAR : 92316803
  • VALEO : 673457
