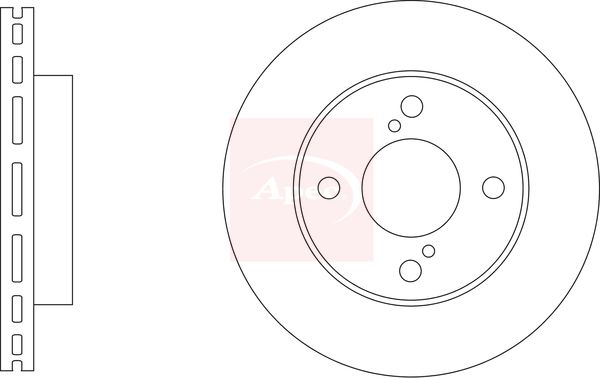

Apec DSK3448 Brake Disc - 1

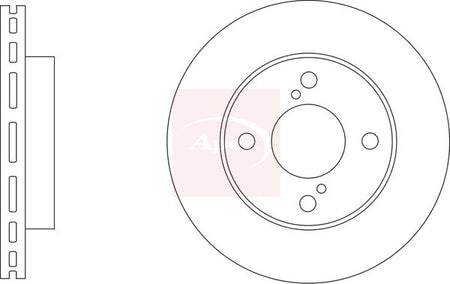

Apec DSK3448 Brake Disc - 1
APEC

Apec DSK3448 Brake Disc

SKU: DSK3448
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£32.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
IGNIS III (MF, FF)
Description Cylinder Capacity Horse Power Year
1.2 (ATK412) 1242 CCM 90 HP From 10/2016
1.2 AllGrip (ATK412) 1242 CCM 90 HP From 10/2016
1.2 Hybrid (ATK412, FF21S) 1242 CCM 90 HP From 02/2016
1.2 Hybrid AllGrip (ATK412) 1242 CCM 90 HP From 02/2016
1.2 Hybrid (ATK412) 1197 CCM 83 HP From 04/2020
1.2 Hybrid AllGrip (ATK412) 1197 CCM 83 HP From 04/2020

The Apec DSK3448 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 230 mm outer diameter, 20 mm brake disc thickness, and 60 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 230
Brake Disc Thickness [mm] : 20
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 60
Number of Holes : 4
  • Vendor APEC
  • SKU DSK3448
  • Barcode 5028906142582
  • SUZUKI : 5531162R00 5531162R00000
  • BLUE PRINT : ADBP430102
  • BORG & BECK : BBD5542
  • BOSCH : 0 986 479 G92
  • DELPHI : BG4974C
  • HELLA : 8DD 355 132-381
  • MEYLE : 33-15 521 0025/PD
  • MINTEX : MDC2910C
  • National : NBD2052
  • TEXTAR : 92309403
