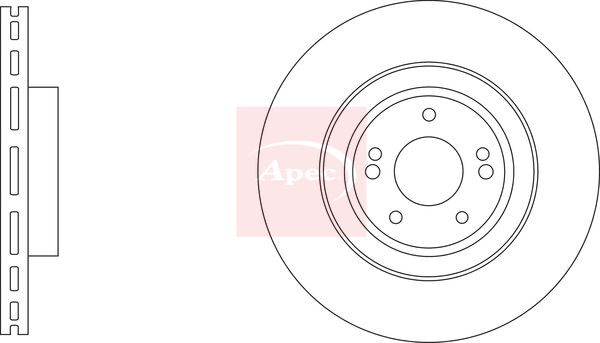

Apec DSK3457 Brake Disc - 1

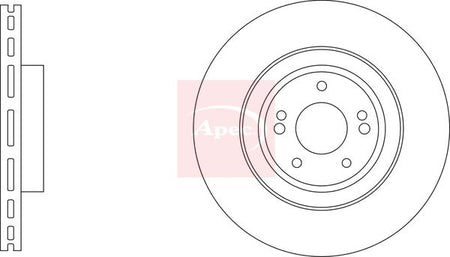

Apec DSK3457 Brake Disc - 1
APEC

Apec DSK3457 Brake Disc

SKU: DSK3457
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£89.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

KIA
STINGER (CK)
Description Cylinder Capacity Horse Power Year
2.2 CRDi VGT 4WD 2199 CCM 200 HP From 06/2017
2.0 T-GDI 1998 CCM 247 HP From 06/2017
2.0 T-GDI 1998 CCM 245 HP From 07/2018
2.0 T-GDI 1998 CCM 197 HP From 07/2018
STINGER Hatchback Van (CK)
Description Cylinder Capacity Horse Power Year
2.0 T-GDI 1998 CCM 245 HP From 07/2018
GENESIS
G70 (IK)
Description Cylinder Capacity Horse Power Year
2.0 T-GDi 1998 CCM 197 HP From 06/2021
2.2 CRDi 2199 CCM 200 HP From 06/2021
2.0 T-GDi 1998 CCM 245 HP From 06/2021
G70 Shooting Brake (IK)
Description Cylinder Capacity Horse Power Year
2.0 T-GDi 1998 CCM 197 HP From 06/2021
2.2 CRDi 2199 CCM 200 HP From 06/2021
2.0 T-GDi 1998 CCM 245 HP From 06/2021

The Apec DSK3457 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 345 mm outer diameter, 30 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 345
Brake Disc Thickness [mm] : 30
Height [mm] : 57
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Machining : High-carbon
Test Mark : 90R - 02C01514/42065
  • Vendor APEC
  • SKU DSK3457
  • Barcode 5028906142612
  • KIA : 51712J5250
  • BLUE PRINT : ADG043239
  • BORG & BECK : BBD6244S
  • DELPHI : BG9389C
  • HELLA : 8DD 355 132-651
  • MINTEX : MDC2925C
  • TEXTAR : 92314805
