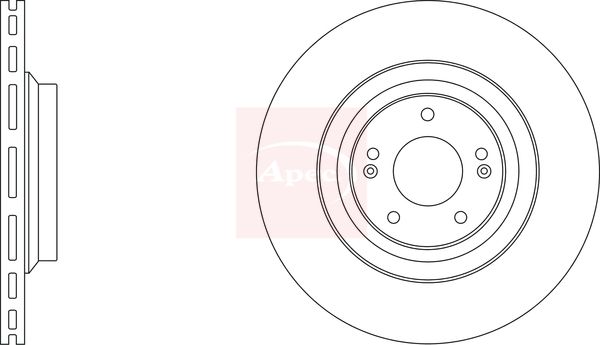

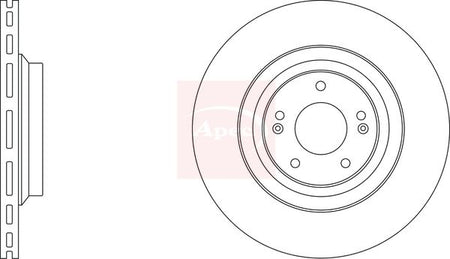

Apec DSK3473 Brake Disc - 1
Apec DSK3473 Brake Disc - 1
APEC

Apec DSK3473 Brake Disc

SKU: DSK3473
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£68.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i30 (PDE, PD, PDEN)
Description Cylinder Capacity Horse Power Year
2.0 N 1998 CCM 275 HP From 07/2017
i30 FASTBACK (PDE, PDEN)
Description Cylinder Capacity Horse Power Year
2.0 N 1998 CCM 275 HP 11/2017 - 09/2020
2.0 N 1998 CCM 280 HP From 03/2021

The Apec DSK3473 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 345 mm outer diameter, 30 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 345
Brake Disc Thickness [mm] : 30
Height [mm] : 52
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Test Mark : 90R - 02C01514/42065
  • Vendor APEC
  • SKU DSK3473
  • Barcode 5028906142674
  • HYUNDAI : 51712S0100
  • BLUE PRINT : ADG043246
  • BORG & BECK : BBD6246S
  • BOSCH : 0 986 479 G26
  • DELPHI : BG9381C
  • HELLA : 8DD 355 132-681
  • MINTEX : MDC2928C
  • National : NBD2062
  • TEXTAR : 92315103
