Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

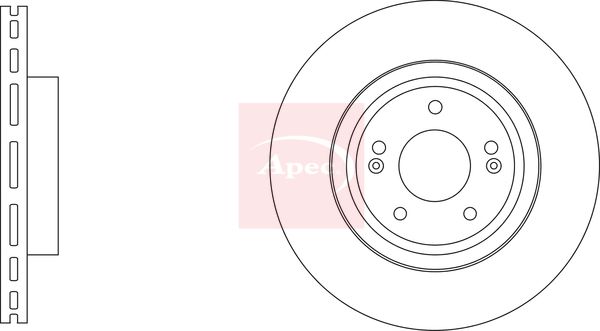

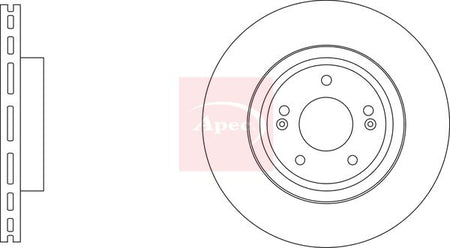

Apec DSK3474 Brake Disc - 1
Apec DSK3474 Brake Disc - 1
APEC

Apec DSK3474 Brake Disc

SKU: DSK3474
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£36.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i30 (PDE, PD, PDEN)
Description Cylinder Capacity Horse Power Year
2.0 N 1998 CCM 275 HP From 07/2017
i30 FASTBACK (PDE, PDEN)
Description Cylinder Capacity Horse Power Year
2.0 N 1998 CCM 275 HP 11/2017 - 09/2020
2.0 N 1998 CCM 280 HP From 03/2021
KONA (OS, OSE, OSI)
Description Cylinder Capacity Horse Power Year
2.0 N 1998 CCM 280 HP 07/2021 - 03/2023

The Apec DSK3474 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 314 mm outer diameter, 20 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 314
Brake Disc Thickness [mm] : 20
Height [mm] : 33
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C01049/53896
  • Vendor APEC
  • SKU DSK3474
  • Barcode 5028906142681
  • HYUNDAI : 58411K9500 58411S0500
  • BLUE PRINT : ADG043248
  • BORG & BECK : BBD5583
  • DELPHI : BG5077C
  • MINTEX : MDC2843C
  • TEXTAR : 92296203
