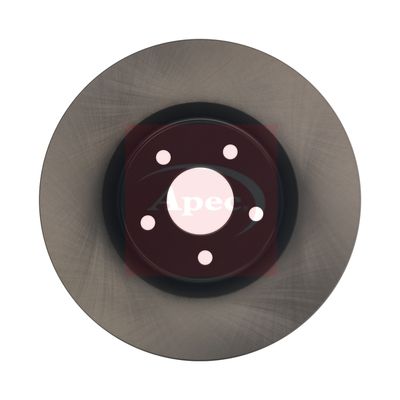

Apec DSK3480 Brake Disc - 1
Apec DSK3480 Brake Disc - 2
Apec DSK3480 Brake Disc - 1
Apec DSK3480 Brake Disc - 2
APEC

Apec DSK3480 Brake Disc

SKU: DSK3480
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£50.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS IV (HN)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 999 CCM 125 HP 01/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 01/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 01/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 01/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 123 HP 11/2018 - 11/2025
1.0 EcoBoost mHEV Active 999 CCM 125 HP 01/2021 - 11/2025
FOCUS IV Turnier (HP)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 85 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 101 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 09/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 09/2018 - 11/2025
1.0 EcoBoost mHEV 999 CCM 155 HP 07/2020 - 11/2025
1.0 EcoBoost mHEV 999 CCM 125 HP 07/2020 - 11/2025
FOCUS IV Saloon (HM)
Description Cylinder Capacity Horse Power Year
1.5 EcoBlue 1499 CCM 120 HP 11/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 11/2018 - 11/2025
1.0 EcoBoost 999 CCM 101 HP 11/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 11/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 11/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 11/2018 - 11/2025
1.5 EcoBlue 1499 CCM 116 HP 05/2024 - 11/2025
KUGA III (DFK)
Description Cylinder Capacity Horse Power Year
2.5 Duratec Plug-in-Hybrid 2488 CCM 224 HP From 07/2019
2.0 EcoBlue mHEV 1995 CCM 150 HP From 07/2019
2.0 EcoBlue 4x4 1995 CCM 190 HP From 07/2019
1.5 EcoBlue 1499 CCM 120 HP From 07/2019
1.5 EcoBoost 1496 CCM 120 HP From 07/2019
2.5 FHEV 4x4 2488 CCM 190 HP From 01/2021
2.5 FHEV 2488 CCM 190 HP From 01/2021
1.5 Ecoboost 1496 CCM 150 HP From 07/2019
2.0 TDCi 1995 CCM 120 HP From 11/2022
2.0 TDCi 4x4 1995 CCM 120 HP From 11/2022
2.5 Duratec Plug-in-Hybrid 4x4 2488 CCM 224 HP From 07/2019
2.5 Duratec FHEV 2488 CCM 179 HP From 01/2024
2.5 Duratec FHEV 4x4 2488 CCM 182 HP From 01/2024
2.5 Duratec PHEV 2488 CCM 242 HP From 01/2024

The Apec DSK3480 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 308 mm outer diameter, 27 mm brake disc thickness, and 63 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 27
Height [mm] : 50
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 63
Number of Holes : 5
Test Mark : 90R-02C01275/31234
  • Vendor APEC
  • SKU DSK3480
  • Barcode 5028906149352
  • FORD : 2305506 JX611125BEB
  • BLUE PRINT : ADBP430032
  • BORG & BECK : BBD6225S
  • BOSCH : 0 986 479 H51
  • DELPHI : BG5063C
  • FEBI BILSTEIN : 171480
  • HELLA : 8DD 355 132-291
  • MEYLE : 783 521 0050/PD
  • MINTEX : MDC2892C
  • National : NBD2094
  • SKF : VKBD 81375 V1
  • TEXTAR : 92306703
