Apec DSK3496 Brake Disc - 1
Apec DSK3496 Brake Disc - 2
Apec DSK3496 Brake Disc - 1
Apec DSK3496 Brake Disc - 2
APEC

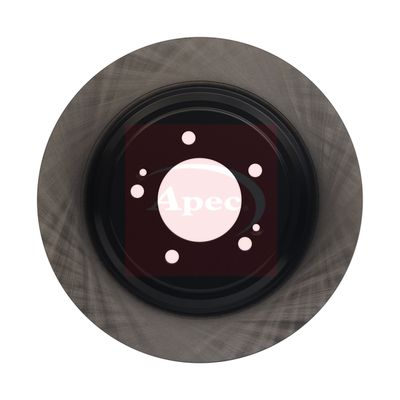

Apec DSK3496 Brake Disc

SKU: DSK3496
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£39.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
KONA (OS, OSE, OSI)
Description Cylinder Capacity Horse Power Year
EV 204 HP 04/2018 - 03/2023
EV 136 HP 04/2018 - 04/2023
KONA SUV Van (OS, OSE, OSI)
Description Cylinder Capacity Horse Power Year
EV 204 HP From 04/2018
KIA
NIRO I (DE)
Description Cylinder Capacity Horse Power Year
E-NIRO 204 HP 08/2018 - 08/2022
E-NIRO 136 HP 08/2018 - 08/2022
OPTIMA (JF)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 141 HP 11/2015 - 04/2018
2.0 GDI Hybrid 1999 CCM 205 HP 09/2016 - 12/2019
1.6 CRDi 1598 CCM 136 HP 06/2018 - 12/2019
OPTIMA Sportswagon (JF)
Description Cylinder Capacity Horse Power Year
1.7 CRDi 1685 CCM 141 HP 09/2016 - 04/2018
1.6 CRDi 1598 CCM 136 HP 01/2018 - 12/2019
2.0 GDI Hybrid 1999 CCM 205 HP 04/2017 - 12/2019
SOUL III (SK3)
Description Cylinder Capacity Horse Power Year
EV 204 HP From 01/2019
E-SOUL 136 HP From 01/2019
SOUL III Cargo (SK3)
Description Cylinder Capacity Horse Power Year
E-SOUL 204 HP From 06/2020
E-SOUL 136 HP From 06/2020

The Apec DSK3496 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 300 mm outer diameter, 10 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 10
Height [mm] : 32
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 76
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3496
  • Barcode 5028906147815
  • HYUNDAI : 58411D4650
  • KIA : 58411D4650
  • BLUE PRINT : ADG043230
  • BORG & BECK : BBD5551
  • BOSCH : 0 986 479 H01
  • DELPHI : BG5059C
  • HELLA : 8DD 355 134-291
  • MEYLE : 28-15 523 0019/PD
  • MINTEX : MDC3016C
  • National : NBD2169
  • TEXTAR : 92332703
