APEC

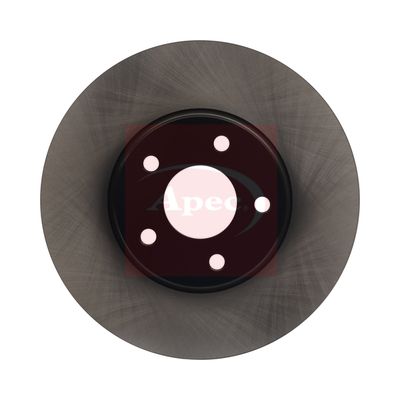

Apec DSK3516 Brake Disc

SKU: DSK3516
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£48.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS IV (HN)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 999 CCM 101 HP 01/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 01/2018 - 11/2025
1.0 EcoBoost 998 CCM 85 HP 05/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 01/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 01/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 123 HP 11/2018 - 11/2025
1.0 EcoBoost mHEV 999 CCM 155 HP 06/2020 - 11/2025
1.0 EcoBoost mHEV 999 CCM 125 HP 06/2020 - 11/2025
1.0 EcoBoost mHEV Active 999 CCM 125 HP 01/2021 - 11/2025
FOCUS IV Turnier (HP)
Description Cylinder Capacity Horse Power Year
1.5 EcoBlue 1499 CCM 95 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 09/2018 - 11/2025
FOCUS IV Saloon (HM)
Description Cylinder Capacity Horse Power Year
1.5 EcoBlue 1499 CCM 120 HP 11/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 11/2018 - 11/2025
1.0 EcoBoost 999 CCM 101 HP 11/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 11/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 11/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 11/2018 - 11/2025
1.5 EcoBlue 1499 CCM 116 HP 05/2024 - 11/2025

The Apec DSK3516 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 282 mm outer diameter, 27 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 27
Height [mm] : 50
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Machining : High-carbon
Test Mark : 90R-02C01275/28925
  • Vendor APEC
  • SKU DSK3516
  • Barcode 5028906149420
  • FORD : 2208066 2305503 JX611125AEA
  • BLUE PRINT : ADF124380
  • BORG & BECK : BBD5550
  • BOSCH : 0 986 479 F81
  • DELPHI : BG5296C
  • FEBI BILSTEIN : 108192
  • HELLA : 8DD 355 132-021
  • MEYLE : 715 521 0049/PD
  • MINTEX : MDC2866C
  • National : NBD2093
  • SKF : VKBD 81272 V2
  • TEXTAR : 92303405
  • TRW : DF6975
  • VALEO : 673196
