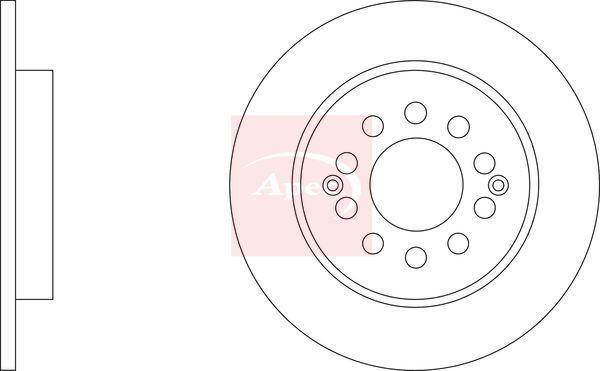

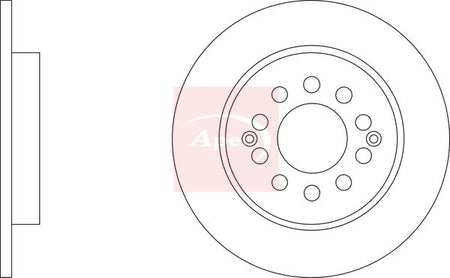

Apec DSK3520 Brake Disc
Your selected vehicle
Regular price
£24.08
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Apec DSK3520 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 255 mm outer diameter, 9 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
solid
Outer Diameter [mm] :
255
Brake Disc Thickness [mm] :
9
Height [mm] :
37
Bolt Hole Circle Ø [mm] :
100
Centering Diameter [mm] :
64
Number of Holes :
5
Test Mark :
90R-02C0270/0004
- Vendor APEC
- SKU DSK3520
- MG : 10266049
- BLUE PRINT : ADBP430190
- BORG & BECK : BBD5604
- FEBI BILSTEIN : 188761
- MINTEX : MDC3159C
- NAPA : NBD5897
- National : NBD2219
- TEXTAR : 92342703
