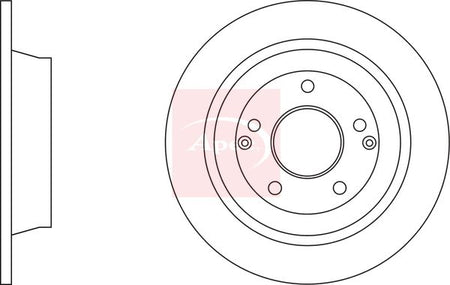

Apec DSK3530 Brake Disc - 1

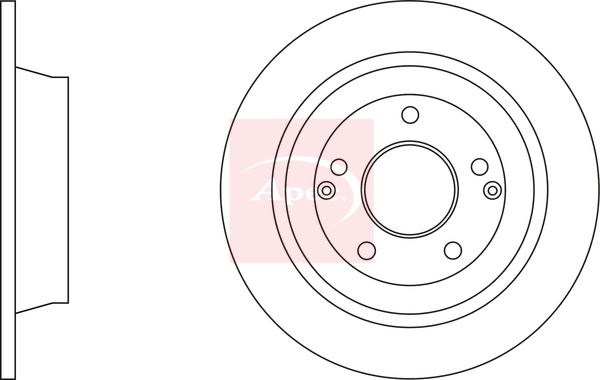

Apec DSK3530 Brake Disc - 1
APEC

Apec DSK3530 Brake Disc

SKU: DSK3530
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SWACE (AMZ_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid 1798 CCM 102 HP From 10/2020
1.8 Hybrid 1798 CCM 122 HP From 10/2020
1.8 Hybrid 1798 CCM 140 HP From 03/2023
TOYOTA
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 01/2019
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
1.8 Hybrid (ZWE211, ZWE219) 1798 CCM 122 HP From 10/2018
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025
COROLLA Saloon (_E21_)
Description Cylinder Capacity Horse Power Year
1.6 VVTi (ZRE210) 1598 CCM 132 HP From 01/2019
1.6 VVTi (ZRE210) 1598 CCM 122 HP From 01/2019
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid 1798 CCM 126 HP From 01/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
1.8 Hybrid (ZWE211W) 1798 CCM 122 HP From 02/2019
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025
COROLLA COMMERCIAL (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 06/2022
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 01/2023

The Apec DSK3530 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 274 mm outer diameter, 10 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 274
Brake Disc Thickness [mm] : 10
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0270/0006
  • Vendor APEC
  • SKU DSK3530
  • Barcode 5028906168032
  • SUZUKI : T424310232
  • TOYOTA : 4243102320
  • BLUE PRINT : ADBP430147
  • BORG & BECK : BBD5585
  • BOSCH : 0 986 479 H62
  • BOSCH : 0 986 479 H73
  • DELPHI : BG5052C
  • FEBI BILSTEIN : 180025
  • MEYLE : 30-15 523 0116/PD
  • MINTEX : MDC2961C
  • National : NBD2498
  • TEXTAR : 92321103
