Apec DSK3531 Brake Disc - 1
Apec DSK3531 Brake Disc - 1
APEC

Apec DSK3531 Brake Disc

SKU: DSK3531
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£44.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
SOLTERRA
Description Cylinder Capacity Horse Power Year
EV 218 HP From 06/2022
SUZUKI
ACROSS (A5Z_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid 2487 CCM 306 HP From 06/2020
TOYOTA
bZ4X (_EAM1_)
Description Cylinder Capacity Horse Power Year
EV (XEAM10) 204 HP From 12/2021
EV (YEAM15) 218 HP From 12/2021
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
2.5 Hybrid AWD (AXAP54, AXAP54L) 2487 CCM 306 HP From 09/2020
LEXUS
NX II (_A2_, _H2_)
Description Cylinder Capacity Horse Power Year
350h (AAZH20) 2487 CCM 243 HP From 09/2021
350h E-Four (AAZH25) 2487 CCM 243 HP From 09/2021
450h+ E-Four (AAZH26) 2487 CCM 309 HP From 09/2021
RZ (_BM1_)
Description Cylinder Capacity Horse Power Year
450e DIRECT4 (XEBM15) 313 HP From 01/2023
300e (XEBM10) 204 HP From 12/2023
UX (_AA1_, _AH1_, _MA1_)
Description Cylinder Capacity Horse Power Year
300e (KMA10) 204 HP From 04/2020

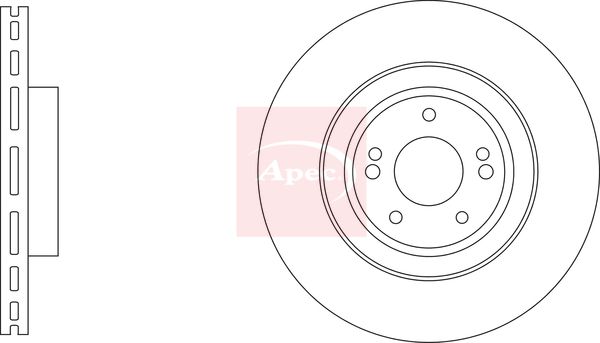

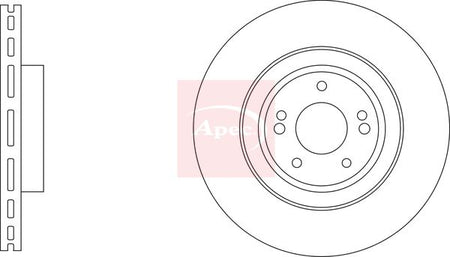

The Apec DSK3531 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 316 mm outer diameter, 18 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 18
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C01408/57951
  • Vendor APEC
  • SKU DSK3531
  • Barcode 5028906168049
  • SUZUKI : T424314208
  • TOYOTA : 4243142080 4243178030
  • BLUE PRINT : ADBP430133
  • BORG & BECK : BBD5612
  • BOSCH : 0 986 479 H19
  • DELPHI : BG5082C
  • DELPHI : BG5228C
  • FEBI BILSTEIN : 179062
  • HELLA : 8DD 355 134-961
  • MINTEX : MDC3167C
  • TEXTAR : 92343103
