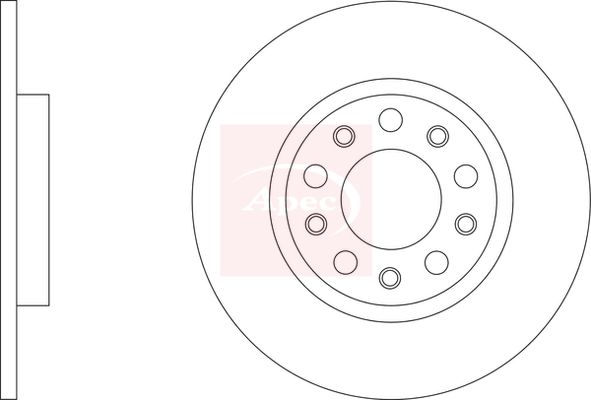

Apec DSK3549 Brake Disc - 1

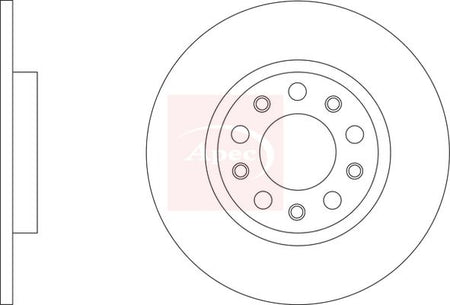

Apec DSK3549 Brake Disc - 1
APEC

Apec DSK3549 Brake Disc

SKU: DSK3549
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£45.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JEEP
CHEROKEE (KL)
Description Cylinder Capacity Horse Power Year
3.2 V6 4x4 3239 CCM 272 HP From 11/2013
2.0 CRD 4x4 1956 CCM 170 HP 04/2014 - 08/2018
2.0 CRD 1956 CCM 140 HP 04/2014 - 08/2018
2.0 CRD 4x4 1956 CCM 140 HP 04/2014 - 08/2018
3.2 V6 3239 CCM 272 HP From 11/2013
2.2 CRD 4x4 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 4x4 2184 CCM 200 HP 08/2015 - 08/2018
3.2 V6 4x4 3239 CCM 271 HP From 05/2014
3.2 4x4 3239 CCM 275 HP From 01/2014

The Apec DSK3549 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 320 mm outer diameter, 12 mm brake disc thickness, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 12
Height [mm] : 33
Bolt Hole Circle Ø [mm] : 70
Centering Diameter [mm] : 70
Number of Holes : 5
Test Mark : 90R-02C01409/43397
  • Vendor APEC
  • SKU DSK3549
  • Barcode 5028906213107
  • JEEP : 2AMV9886AC 4779886AB 4779886AC 68243428AB K68243428AB
  • BLUE PRINT : ADA104376
  • BORG & BECK : BBD5470
  • BOSCH : 0 986 479 G74
  • DELPHI : BG4961C
  • FEBI BILSTEIN : 170598
  • HELLA : 8DD 355 132-101
  • MINTEX : MDC2874C
  • National : NBD2568
  • TEXTAR : 92304103
