APEC

Apec DSK3590 Brake Disc

SKU: DSK3590

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£84.45 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI

SANTA FE IV (TM, TMA)

Description	Cylinder Capacity	Horse Power	Year
2.0 CRDi	1995 CCM	186 HP	02/2018 - 07/2020
2.0 CRDi AWD	1995 CCM	186 HP	02/2018 - 07/2020
2.2 CRDi AWD	2199 CCM	203 HP	From 02/2018
2.2 CRDi	2199 CCM	200 HP	07/2018 - 11/2020
2.2 CRDi AWD	2199 CCM	200 HP	07/2018 - 11/2020
2.0 CRDi	1995 CCM	150 HP	07/2018 - 07/2020
2.0 CRDi AWD	1995 CCM	150 HP	07/2018 - 07/2020
2.2 CRDi	2151 CCM	193 HP	From 04/2022

KIA

SORENTO III (UM)

Description	Cylinder Capacity	Horse Power	Year
2.2 CRDi	2199 CCM	200 HP	01/2015 - 08/2020
2.2 CRDi 4WD	2199 CCM	200 HP	01/2015 - 08/2020

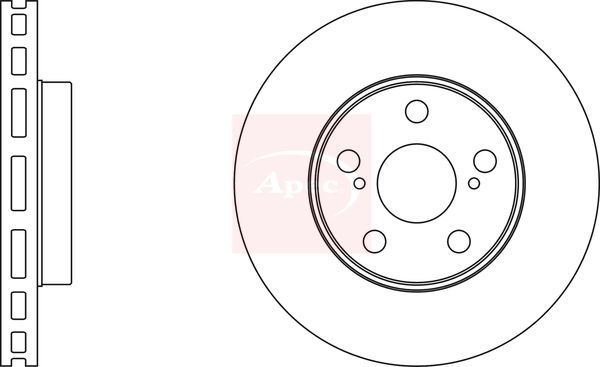

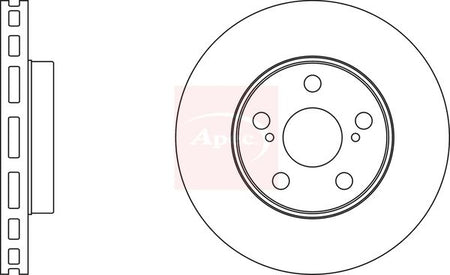

The Apec DSK3590 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 340 mm outer diameter, 30 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 340

Brake Disc Thickness [mm] : 30

Height [mm] : 50

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 69

Number of Holes : 5

Test Mark : 90R-02C01514/56810

BLUE PRINT : ADBP430077
BORG & BECK : BBD6247S
BOSCH : 0 986 479 G93
DELPHI : BG9399C
FEBI BILSTEIN : 174536
HELLA : 8DD 355 134-871
MINTEX : MDC3020C
MINTEX : MDC3161C
National : NBD2220
TEXTAR : 92333403
TEXTAR : 92342803
