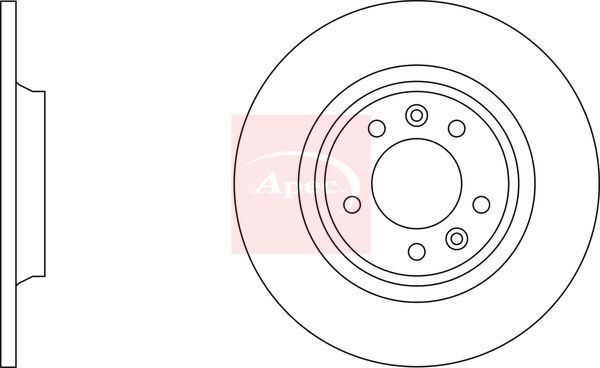

Apec DSK3628 Brake Disc - 1

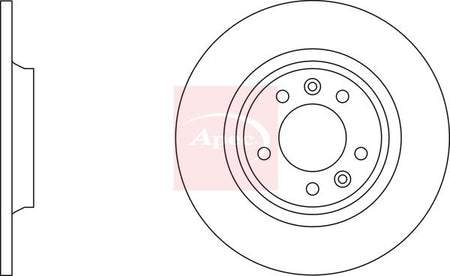

Apec DSK3628 Brake Disc - 1
APEC

Apec DSK3628 Brake Disc

SKU: DSK3628
Your selected vehicle
Out of stock
Out of Stock
£44.12 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.5 AWD 2488 CCM 194 HP From 05/2017
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid AWD (DMEW, DMFW) 1998 CCM 150 HP From 01/2020
e-SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 06/2021
MX-30 (DR)
Description Cylinder Capacity Horse Power Year
e-SKYACTIV (DR1W) 145 HP From 05/2020
e-SKYACTIV 143 HP From 05/2020
e-SKYACTIV R-EV 830 CCM 170 HP From 02/2023

The Apec DSK3628 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 303 mm outer diameter, 10 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 303
Brake Disc Thickness [mm] : 10
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0270/0010
  • Vendor APEC
  • SKU DSK3628
  • Barcode 5028906217761
  • MAZDA : DGJ626251 K01126251C
  • BLUE PRINT : ADM543124
  • BORG & BECK : BBD5303
  • BORG & BECK : BBD5669
  • BOSCH : 0 986 479 C28
  • BOSCH : 0 986 479 V04
  • FEBI BILSTEIN : 108430
  • HELLA : 8DD 355 133-481
  • MINTEX : MDC2991C
  • TEXTAR : 92324803
