Apec DSK3747 Brake Disc - 1
Apec DSK3747 Brake Disc - 1
APEC

Apec DSK3747 Brake Disc

SKU: DSK3747
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£22.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
ZOE (BFM_)
Description Cylinder Capacity Horse Power Year
ZOE 88 HP From 06/2012
ZOE 92 HP From 09/2016
ZOE (BFMD) 109 HP From 08/2018
ZOE (BFMC, BFMD) 136 HP From 09/2019
ZOE Hatchback Van (BFM_)
Description Cylinder Capacity Horse Power Year
Electric (BFMF) 109 HP From 04/2019

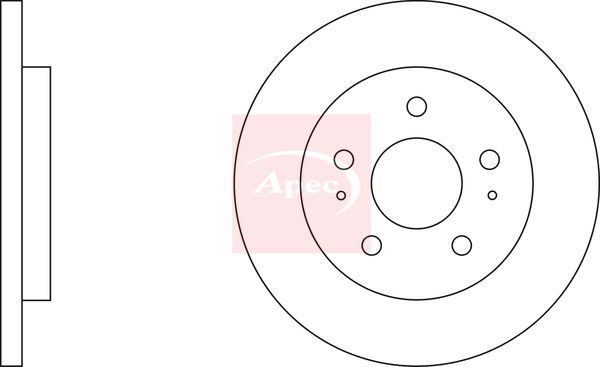

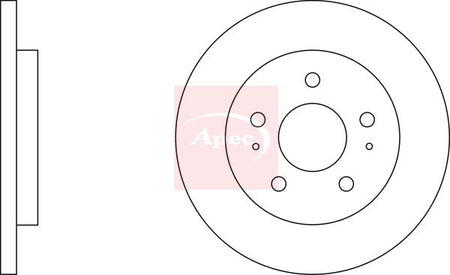

The Apec DSK3747 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 260 mm outer diameter, 8 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 260
Brake Disc Thickness [mm] : 8
Height [mm] : 35
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3747
  • Barcode 5028906213275
  • RENAULT : 440A09572R
  • BLUE PRINT : ADBP430167
  • BORG & BECK : BBD5666
  • BOSCH : 0 986 479 H69
  • DELPHI : BG5139C
  • FEBI BILSTEIN : 184694
  • MINTEX : MDC3001C
  • National : NBD2520
  • TEXTAR : 92327203
