APEC

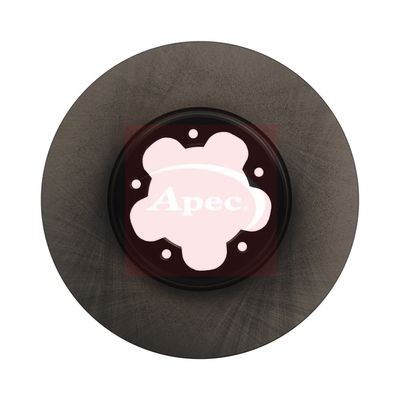

Apec DSK3752 Brake Disc

SKU: DSK3752
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£60.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue mHEV 1995 CCM 130 HP From 05/2019
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 06/2024
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024

The Apec DSK3752 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 33 mm brake disc thickness, and 10 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 33
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 116
Wheel Bolt Bore Diameter [mm] : 10
Centering Diameter [mm] : 93
Number of Holes : 5
Test Mark : 90R-02C0448/1526
  • Vendor APEC
  • SKU DSK3752
  • Barcode 5028906213282
  • FORD : 2168838 2221678 BK211125GA BK211125HA
  • BLUE PRINT : ADBP430075
  • BORG & BECK : BBD6269S
  • DELPHI : BG9391C
  • FEBI BILSTEIN : 174457
  • HELLA : 8DD 355 133-161
  • MINTEX : MDC2959C
  • National : NBD2060
  • SKF : VKBD 81389 V1
  • TEXTAR : 92320303
