Apec DSK3828 Brake Disc - 1
Apec DSK3828 Brake Disc - 1
APEC

Apec DSK3828 Brake Disc

SKU: DSK3828
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£28.67 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
SWIFT V (AZ)
Description Cylinder Capacity Horse Power Year
1.0 (A2L310) 998 CCM 111 HP From 04/2017
1.0 SHVS (A2L310) 998 CCM 111 HP From 04/2017
1.2 (A2L412, ZC83S) 1242 CCM 90 HP From 04/2017
1.2 SHVS (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (ZD53S) 1242 CCM 91 HP From 01/2017
1.2 Hybrid (Mild Hybrid) (A2L412) 1197 CCM 83 HP From 06/2020
1.2 Hybrid (Mild Hybrid) AllGrip (A2L412) 1197 CCM 83 HP From 06/2020

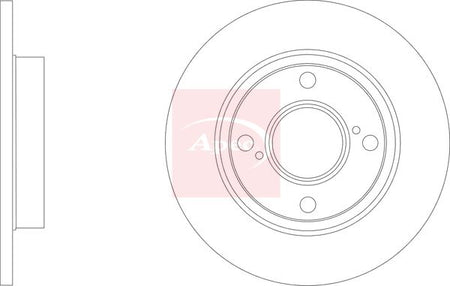

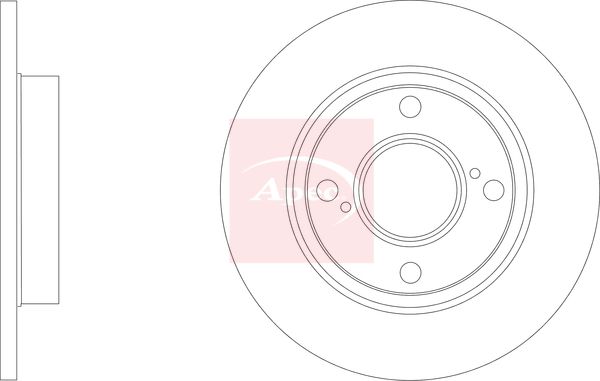

The Apec DSK3828 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 228 mm outer diameter, 9 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 228
Brake Disc Thickness [mm] : 9
Height [mm] : 34
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 62
Number of Holes : 4
Test Mark : 90R-02C0355/1422
  • Vendor APEC
  • SKU DSK3828
  • Barcode 5028906213435
  • SUZUKI : 5561152R00 5561152R01
  • BLUE PRINT : ADK84351
  • BLUE PRINT : ADK84352
  • BORG & BECK : BBD5530
  • BOSCH : 0 986 479 F38
  • HELLA : 8DD 355 132-041
  • MINTEX : MDC2868C
  • TEXTAR : 92303603
