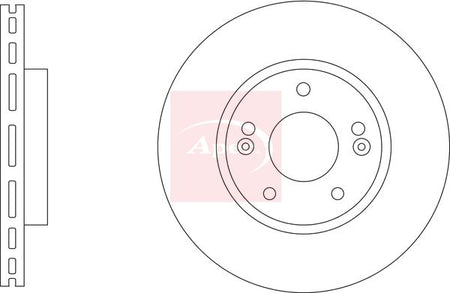

Apec DSK4139 Brake Disc - 1

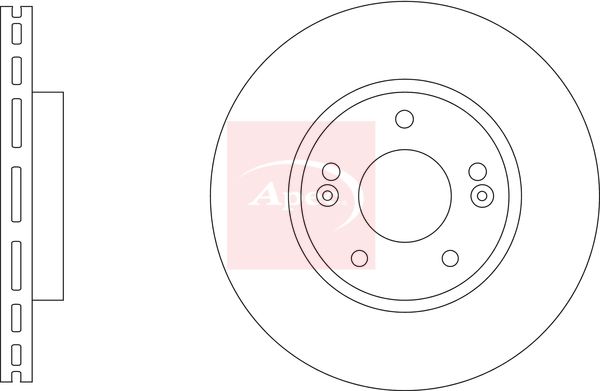

Apec DSK4139 Brake Disc - 1
APEC

Apec DSK4139 Brake Disc

SKU: DSK4139
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£65.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
TUCSON (NX4E, NX4A)
Description Cylinder Capacity Horse Power Year
1.6 T-GDi Hybrid 48V 1598 CCM 150 HP From 11/2020
1.6 T-GDi Hybrid 1598 CCM 230 HP From 11/2020
1.6 T-GDi Hybrid HTRAC 1598 CCM 230 HP From 11/2020
1.6 T-GDi 1598 CCM 179 HP From 07/2021
1.6 T-GDi 1598 CCM 150 HP From 05/2021
1.6 T-GDi Hybrid 48V HTRAC 1598 CCM 179 HP From 11/2020
1.6 T-GDI Plug-in-Hybrid HTRAC 1598 CCM 265 HP From 05/2021
1.6 CRDi 1598 CCM 116 HP From 11/2020
1.6 T-GDi Hybrid 48V 1598 CCM 179 HP From 11/2020
1.6 CRDi 1598 CCM 136 HP From 11/2020
1.6 CRDi HTRAC 1598 CCM 136 HP From 11/2020
1.6 T-GDi 1598 CCM 160 HP From 05/2024
1.6 T-GDi Hybrid 48V 1598 CCM 160 HP From 06/2024
1.6 T-GDi Hybrid 48V All-wheel Drive 1598 CCM 160 HP From 06/2024
1.6 T-GDi Hybrid 1598 CCM 215 HP From 06/2024
KIA
SPORTAGE V (NQ5)
Description Cylinder Capacity Horse Power Year
1.6 CRDi 1598 CCM 116 HP From 11/2021
1.6 T-GDI MHEV 1598 CCM 179 HP From 11/2021
1.6 T-GDI MHEV AWD 1598 CCM 179 HP From 11/2021
1.6 CRDi MHEV 1598 CCM 136 HP From 11/2021
1.6 CRDi MHEV AWD 1598 CCM 136 HP From 11/2021
1.6 T-GDi Plug-in Hybrid AWD 1598 CCM 265 HP From 11/2021
1.6 T-GDi Hybrid 1598 CCM 230 HP From 11/2021
1.6 T-GDi Hybrid AWD 1598 CCM 230 HP From 11/2021
1.6 T-GDi Plug-in Hybrid AWD 1598 CCM 252 HP From 02/2024
1.6 T-GDI MHEV 1598 CCM 160 HP From 02/2024
1.6 T-GDi Hybrid AWD 1598 CCM 215 HP From 02/2024
1.6 T-GDi Hybrid 1598 CCM 215 HP From 02/2024

The Apec DSK4139 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 325 mm outer diameter, 30 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 325
Brake Disc Thickness [mm] : 30
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Test Mark : 90R-02C01514/42066
  • Vendor APEC
  • SKU DSK4139
  • Barcode 5028906229481
  • HYUNDAI : 51712N7100
  • BLUE PRINT : ADBP430151
  • BORG & BECK : BBD6288S
  • DELPHI : BG9512C
  • HELLA : 8DD 355 134-721
  • MINTEX : MDC3039C
  • TEXTAR : 92337103
