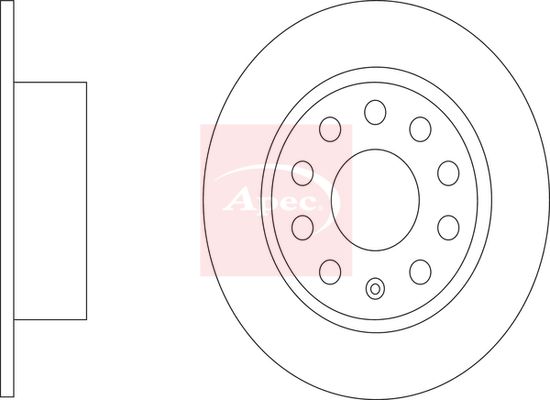

Apec DSK4149 Brake Disc - 1

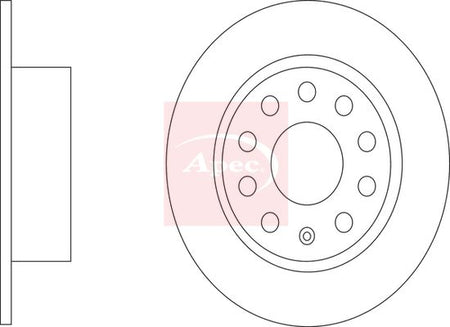

Apec DSK4149 Brake Disc - 1
APEC

Apec DSK4149 Brake Disc

SKU: DSK4149
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£48.17 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
MULTIVAN T7 (STM, STN)
Description Cylinder Capacity Horse Power Year
1.5 TSi 1498 CCM 136 HP 09/2021 - 05/2024
2.0 TSi 1984 CCM 204 HP From 10/2021
1.4 eHybrid 1395 CCM 218 HP 08/2021 - 05/2024
2.0 TDI 1968 CCM 150 HP From 03/2022

The Apec DSK4149 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 300 mm outer diameter, 14 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 14
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C0270/0328
  • Vendor APEC
  • SKU DSK4149
  • Barcode 5028906248826
  • VW : 7T0615601
  • BLUE PRINT : ADBP430197
  • BORG & BECK : BBD6304
  • BOSCH : 0 986 479 K02
  • DELPHI : BG5196C
  • FEBI BILSTEIN : 188793
  • HELLA : 8DD 355 135-021
  • MINTEX : MDC3173C
  • TEXTAR : 92345203
