Apec DSK4151 Brake Disc - 1
Apec DSK4151 Brake Disc - 1
APEC

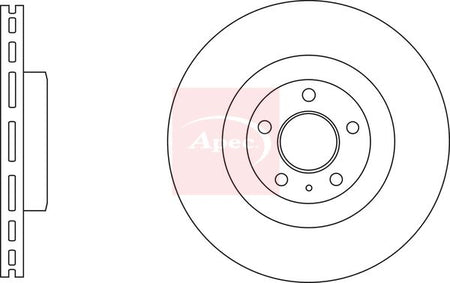

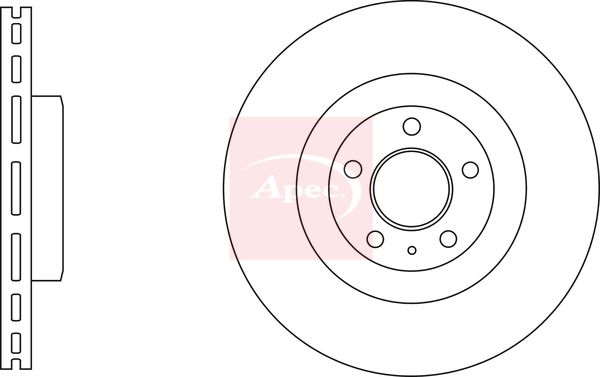

Apec DSK4151 Brake Disc

SKU: DSK4151
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£44.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
CX-60 (KH_)
Description Cylinder Capacity Horse Power Year
e-SKYACTIV PHEV (KH0H) 2488 CCM 328 HP From 03/2022
3.3 e-SKYACTIV-D MHEV AWD (KH3R, KH0H) 3283 CCM 254 HP From 11/2022
3.3 e-SKYACTIV-D MHEV 3283 CCM 200 HP From 11/2022
CX-80 (KL_)
Description Cylinder Capacity Horse Power Year
e-SKYACTIVE-D MHEV AWD (KL0H, KL3R3P) 3283 CCM 254 HP From 04/2024

The Apec DSK4151 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 328 mm outer diameter, 22 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 328
Brake Disc Thickness [mm] : 22
Height [mm] : 41
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C01514/55715
  • Vendor APEC
  • SKU DSK4151
  • Barcode 5028906248857
  • MAZDA : K20F26251
  • BLUE PRINT : ADBP430284
  • BORG & BECK : BBD6336
  • DELPHI : BG5285C
  • FEBI BILSTEIN : 1001790
  • HELLA : 8DD 355 135-281
  • MINTEX : MDC3203C
  • TEXTAR : 92349003
