Apec DSK4229 Brake Disc - 1
Apec DSK4229 Brake Disc - 1
APEC

Apec DSK4229 Brake Disc

SKU: DSK4229
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£51.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CUSTOM V710 Bus (NXN)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1996 CCM 136 HP From 12/2023
2.0 EcoBlue AWD 1996 CCM 136 HP From 12/2023
2.0 EcoBlue 1996 CCM 150 HP From 12/2023
2.0 EcoBlue 1996 CCM 170 HP From 12/2023
2.0 EcoBlue AWD 1996 CCM 170 HP From 12/2023
2.5 Duratec Plug-in-Hybrid 2488 CCM 232 HP From 04/2024
2.0 EcoBlue 1996 CCM 110 HP From 12/2023
E-Tourneo Custom 218 HP From 08/2024
E-Tourneo Custom 136 HP From 08/2024
TRANSIT CUSTOM V710 Van (NRN)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1996 CCM 110 HP From 10/2023
2.0 EcoBlue 1996 CCM 136 HP From 10/2023
2.0 EcoBlue AWD 1996 CCM 136 HP From 10/2023
2.0 EcoBlue 1996 CCM 150 HP From 10/2023
2.0 EcoBlue 1996 CCM 170 HP From 10/2023
2.0 EcoBlue AWD 1996 CCM 170 HP From 10/2023
2.5 Duratec Plug-in-Hybrid 2488 CCM 232 HP From 04/2024
E-Transit Custom 136 HP From 08/2024
E-Transit Custom 218 HP From 08/2024
E-Transit Custom 286 HP From 04/2024
TRANSIT CUSTOM V710 Bus (NXN)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1996 CCM 110 HP From 04/2024
2.0 EcoBlue 1996 CCM 136 HP From 04/2024
2.0 EcoBlue AWD 1996 CCM 136 HP From 04/2024
2.0 EcoBlue 1996 CCM 150 HP From 04/2024
2.0 EcoBlue 1996 CCM 170 HP From 04/2024
2.0 EcoBlue AWD 1996 CCM 170 HP From 04/2024
2.5 Duratec Plug-in-Hybrid 2488 CCM 232 HP From 04/2024
E-Transit Custom 136 HP From 08/2024
E-Transit Custom 218 HP From 08/2024

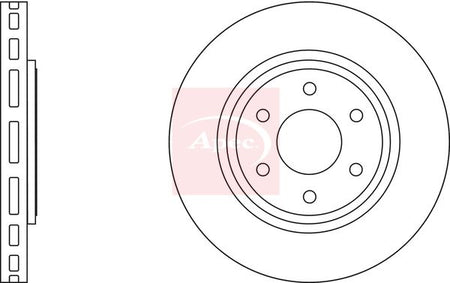

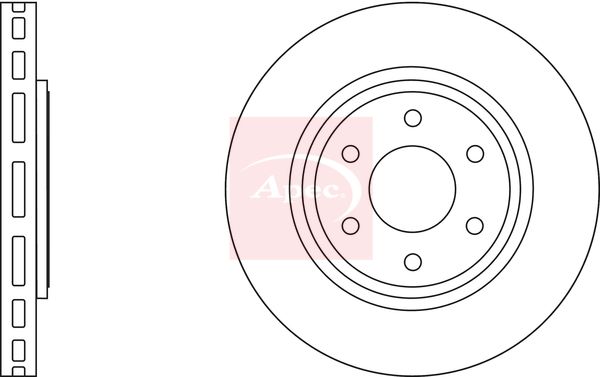

The Apec DSK4229 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 308 mm outer diameter, 33 mm brake disc thickness, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 33
Height [mm] : 62
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 6
Test Mark : 90R-02C01049/52422
  • Vendor APEC
  • SKU DSK4229
  • Barcode 5028906261900
  • FORD : 2653370 PZ311125AA
  • MINTEX : MDC3230C
  • TEXTAR : 92352603
