Apec DSK507 Brake Disc - 1
Apec DSK507 Brake Disc - 1
APEC

Apec DSK507 Brake Disc

SKU: DSK507
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£22.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
200SX (S13)
Description Cylinder Capacity Horse Power Year
1.8 Turbo 1809 CCM 169 HP 07/1988 - 11/1993
1.8 Turbo 1809 CCM 171 HP 09/1988 - 03/1994
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
1.5 1498 CCM 90 HP 03/2000 - 11/2006
1.5 1497 CCM 98 HP 10/2002 - 09/2006
1.5 dCi 1461 CCM 82 HP 01/2003 - 09/2006
ALMERA Mk II (N16)
Description Cylinder Capacity Horse Power Year
1.5 1498 CCM 90 HP 07/2000 - 11/2006
1.5 1497 CCM 98 HP 10/2002 - 09/2006
1.5 dCi 1461 CCM 82 HP 01/2003 - 09/2006
AVENIR (W10)
Description Cylinder Capacity Horse Power Year
2.0 TD (SW10) 1974 CCM 90 HP 11/1992 - 10/1997
PRAIRIE PRO (M11)
Description Cylinder Capacity Horse Power Year
2.0 1974 CCM 105 HP 09/1990 - 03/1992
2.0 4x4 1974 CCM 105 HP 09/1990 - 03/1992
PRIMERA (P10)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 90 HP 06/1990 - 01/1996
2.0 16V 1998 CCM 116 HP 06/1990 - 01/1996
2.0 GT 1998 CCM 150 HP 06/1990 - 01/1996
2.0 i 1998 CCM 125 HP 01/1995 - 06/1996
1.6 1597 CCM 102 HP 06/1993 - 01/1996
PRIMERA Hatchback (P10)
Description Cylinder Capacity Horse Power Year
1.6 1597 CCM 90 HP 06/1990 - 01/1996
2.0 16V 1998 CCM 116 HP 06/1990 - 01/1996
2.0 i 1998 CCM 125 HP 01/1995 - 06/1996
1.6 1597 CCM 102 HP 06/1993 - 01/1996
2.0 1998 CCM 152 HP 09/1990 - 01/1996
2.0 1998 CCM 150 HP 06/1990 - 01/1996
PRIMERA Traveller (W10)
Description Cylinder Capacity Horse Power Year
1.6 i 1597 CCM 90 HP 07/1990 - 03/1998
2.0 i 1998 CCM 116 HP 07/1990 - 03/1998
1.6 i 1597 CCM 102 HP 02/1991 - 03/1998
PRIMERA (P11)
Description Cylinder Capacity Horse Power Year
2.0 16V 1998 CCM 131 HP 09/1996 - 12/2001
2.0 TD 1974 CCM 90 HP 09/1996 - 12/2001
PRIMERA Hatchback (P11)
Description Cylinder Capacity Horse Power Year
1.6 16V 1597 CCM 99 HP 09/1996 - 07/2002
1.6 16V 1597 CCM 90 HP 09/1996 - 07/2002
2.0 16V 1998 CCM 131 HP 09/1996 - 07/2002
2.0 TD 1974 CCM 90 HP 09/1996 - 07/2002
2.0 16V LPG 1998 CCM 131 HP 09/1996 - 07/2002
SKYLINE Coupe (R32)
Description Cylinder Capacity Horse Power Year
2.0 (HCR32) 1998 CCM 155 HP 03/1989 - 06/1993
2.0 (HCR32) 1998 CCM 158 HP 01/1990 - 01/1993

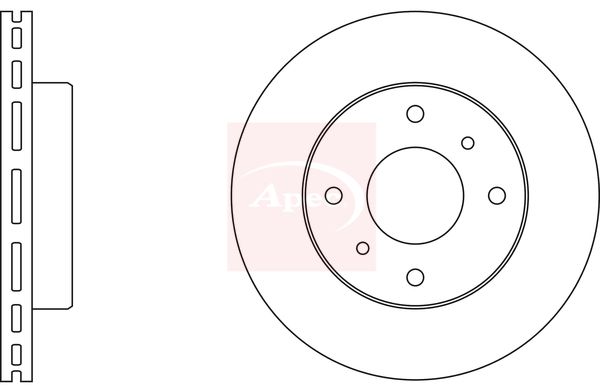

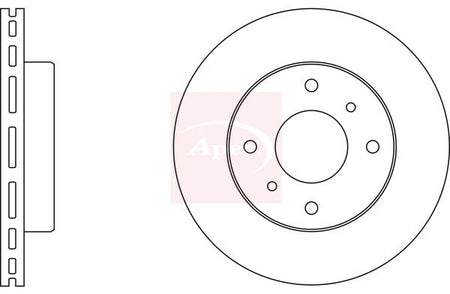

The Apec DSK507 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 22 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 22
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 4
Test Mark : 90R-02C0349/0560
  • Vendor APEC
  • SKU DSK507
  • Barcode 5028906074081
  • APEC : SDK6156
  • BLUE PRINT : ADN143166
  • BLUE PRINT : ADN14341
  • BORG & BECK : BBD4942
  • BOSCH : 0 986 478 567
  • BREMBO : 09.5449.11
  • BREMBO : 09.5449.14
  • DELPHI : BG2567
  • FEBI BILSTEIN : 10628
  • HELLA : 8DD 355 102-651
  • MEYLE : 36-15 521 0014
  • MINTEX : MDC584C
  • National : NBD237
  • SKF : VKBD 80828 V2
  • TEXTAR : 92056300
  • TRW : DF2591
  • VALEO : 186485
  • VALEO : 673138
